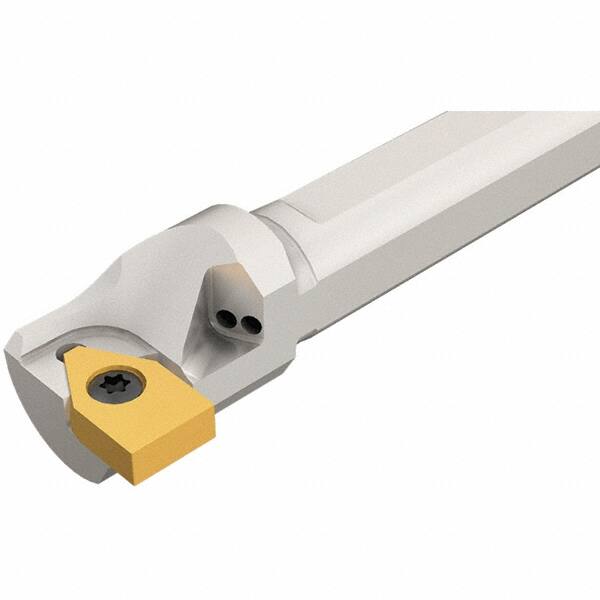

Iscar - XNUW 1305, 90° Lead Angle SXCI Internal Right Hand Indexable Profiling Toolholder - 3/4" Shank Width, 6" Long, Steel, Through Coolant
Item #: 89181788
Brand: Iscar
Model #: 2801459
Exact Tooling IR#: 04
Features and Benefits
Steel is a commonly used material as an econmical alternative for short-run jobs and its ability to be altered for a specific task.
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Hand of Holder | Right Hand |
| Rake | Neutral |
| Insert Compatibility | XNUW 1305 |
| Toolholder Style | SXCI |
| Series | V-Lock |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Holding Method | Screw |
| Rake Angle | 0 |
| Lead Angle | 90 |
| Minimum Hole Diameter (Decimal Inch) | 1.1800 |
| Center to Cutting Edge (Decimal Inch) | 0.5600 |
| Head Length (Decimal Inch) | 1.0000 |
| Maximum Hole Depth (Decimal Inch) | 0.1570 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Complete Insert Compatibility | XNUW 1305-05 |
