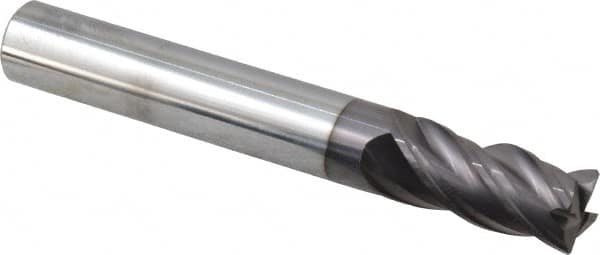

SGS - 0.3937" Diam 4 Flute Solid Carbide 0.5mm Corner Radius End Mill
Item #: 89118418
Brand: SGS
Model #: 46858
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3937 |
| End Type | Corner Radius |
| Corner Radius (mm) | 0.500 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Length of Cut (Decimal Inch) | 0.8660 |
| Shank Diameter (mm) | 10.00 |
| Overall Length (Inch) | 2-53/64 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | Variable |
| Variable Index | Yes |
| Variable Helix | Yes |
| Single or Double End | Single |
| Centercutting | No |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (mm) | +0.000/-0.040 |
| Corner Radius Tolerance (mm) | +0.000/-0.050 |
| Extended Reach | No |
| Series/List | Z1MPCR |
