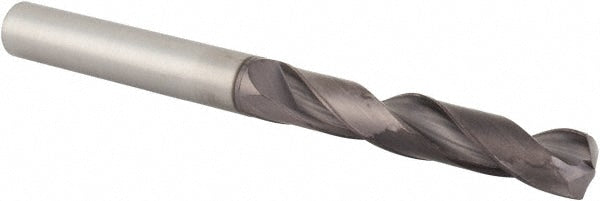

Screw Machine Length Drill Bit: 5/16" Dia, 140 deg Point, Solid Carbide
Item #: 78715034
Brand: YG-1
Model #: 0201ATF
Product Specifications
| Drill Bit Size (Inch) | 5/16 |
| Drill Bit Size (Decimal Inch) | 0.3125 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlN |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | No |
| Primary Workpiece Material | Non-Ferrous Metals; Cast Iron; Plastics; Steel |
| Point Type | Standard |
| Shank Type | Straight |
| Overall Length (Inch) | 3-9/16 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Proprietary Coating/Finish | TiAlN |
| Drill Bit Diameter Tolerance | +0.00000 to -0.00087 in |
| Flute Length (Inch) | 1-7/8 |
| Drill Bit Size Range (Decimal Inch) | 0.3000 to 0.3500 |
| UNSPSC Code | 23241635 |
| Country of Origin | South Korea |
