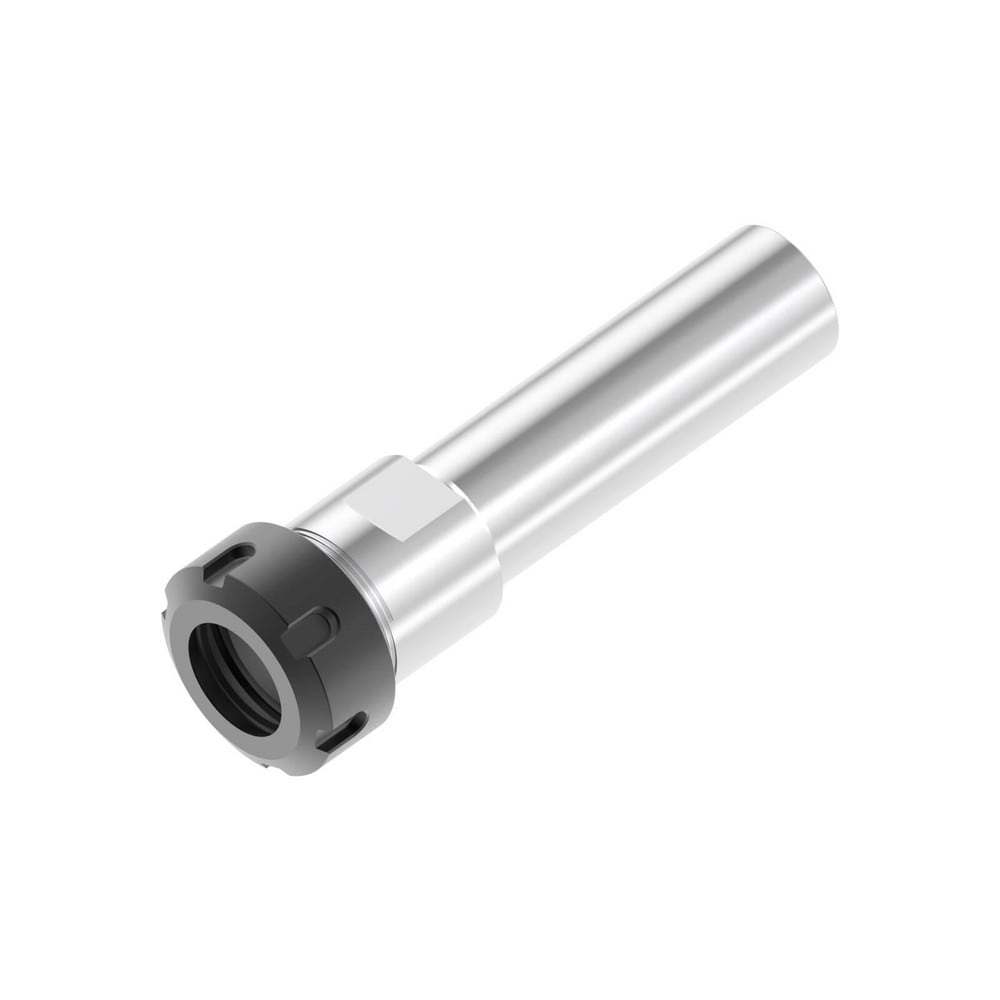

Collet Chuck: ER Collet, Straight Shank
Item #: 78226065
Brand: Seco
Model #: 10229741
Product Specifications
| Collet System | ER |
| Collet Series | ER20 |
| Shank Type | Straight |
| Projection (Decimal Inch) | 4.3307 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0197 |
| Maximum Collet Capacity (Decimal Inch) | 0.5118 |
| Overall Length (mm) | 160.0000 |
| Overall Length (Decimal Inch) | 6.2992 |
| Actuator Type | Wrench |
| Dual Contact | No |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.1024 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Shank Diameter (mm) | 20.0000 |
| Shank Length (Inch) | 1-31/32 |
| Shank Length (Decimal Inch) | 1.9685 |
| Material | Steel |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.1024 |
| Nose Type | Plain |
| Type | Collet Chuck |
| Manufacturer's Part Number | ST20-ER20R-160 |
| UNSPSC Code | 27112808 |
| Head Length (Decimal Inch) | 4.3307 |
| Quick Change | No |
| For Use With | ER Collets |
| Country of Origin | France |
