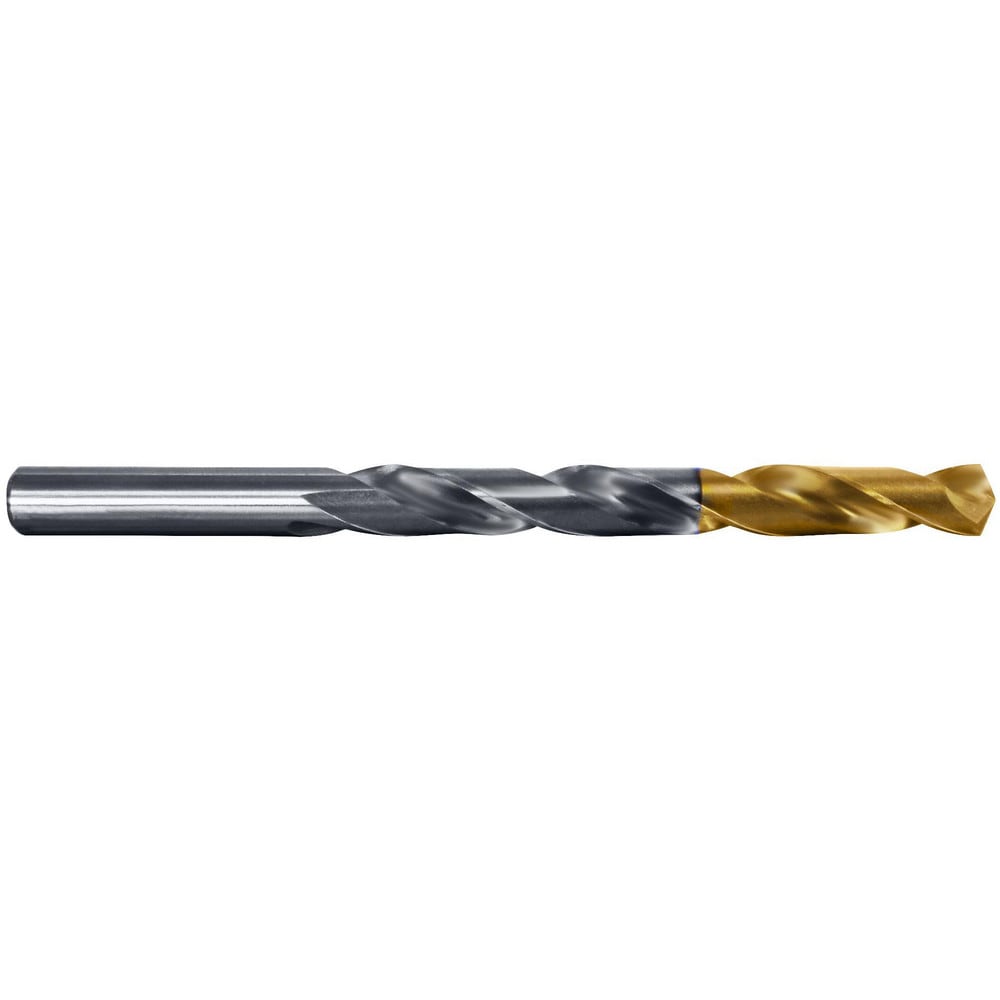

Jobber Drill: #19, 135 deg Point, Cobalt
Item #: 79517835
Brand: Cle-Line
Model #: C66073
Product Specifications
| Drill Bit Size (Wire) | #19 |
| Drill Bit Size (Decimal Inch) | 0.1660 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 135 |
| Coating/Finish | TiN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split Point |
| Primary Workpiece Material | Aluminum & Non-Ferrous; High-Temp Alloy; Cast Iron; CFRP Materials |
| Coolant Through | No |
| Number of Flutes | 2 |
| Flute Length (Inch) | 2-1/8 |
| Primary Workpiece Material Code | P; K; N |
| Shank Diameter (Decimal Inch) | 0.1660 |
| Overall Length (mm) | 82.55 |
| Overall Length (Inch) | 3-1/4 |
| Overall Length (Decimal Inch) | 3.2500 |
| Flute Length (mm) | 53.98 |
| Flute Length (Decimal Inch) | 2.1250 |
| Series | 1501-TT |
| Tool Application | Drilling |
| Shank Diameter (mm) | 4.22 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Tool Performance | General Purpose |
| Double Margin | No |
| Specification Designation | ANSI |
| UNSPSC Code | 20111614 |
| Country of Origin | VARIOUS |
