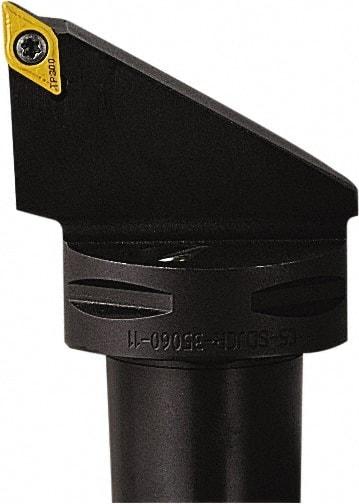

Seco - Left Hand Cut, Size C4, DC.. 11T3.. Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 27mm Ctr to Cutting Edge, 50mm Head Length, Series Seco-Capto
Item #: 88927512
Brand: Seco
Model #: 84487
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C4 |
| Series Name | Seco-Capto |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 50.00 |
| Head Length/Projection (Decimal Inch) | 1.9685 |
| Insert Style | DC.. 11T3.. |
| Internal or External | External |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Maximum Hole Depth (mm) | 50.00 |
| Maximum Hole Depth (Decimal Inch) | 1.9685 |
| Neck Diameter (mm) | 40.00 |
| Neck Diameter (Decimal Inch) | 1.5748 |
| Complete Insert Compatibility | DCGT 11T301-F1; DCGT 11T302F-AL; DCGT 11T304-F1; DCGT 11T304F-AL; DCGT 11T304-MF2; DCGT 11T308F-AL; DCGW 11T302E-L1-B; DCGW 11T302S-01020-L1-B; DCGW 11T304E-L1-B; DCGW 11T304S-01020-L1-B; DCGW 11T304S-01525-L1-B; DCGW 11T304S-02020-L1-B; DCGW 11T304S25-02 |
