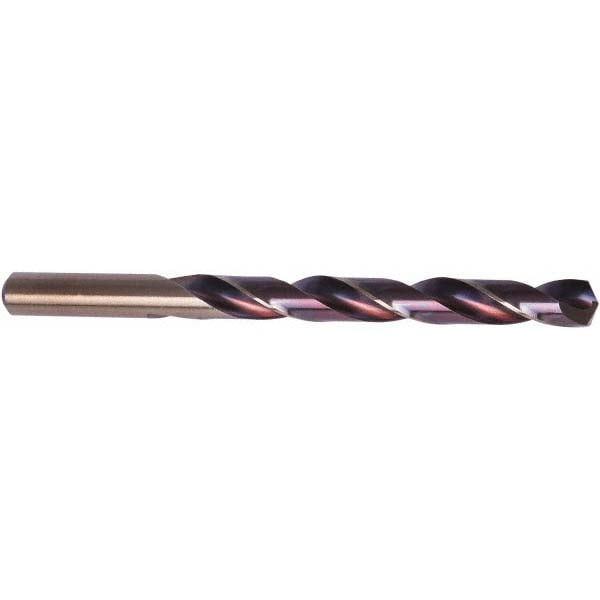

Jobber Drill: #32, 135 deg Point, High Speed Steel
Item #: 80013592
Brand: Precision Twist Drill
Model #: 5995841
Product Specifications
| Drill Bit Size (Wire) | #32 |
| Drill Bit Size (Decimal Inch) | 0.1160 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 135 |
| Coating/Finish | Straw |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | High-Temp Alloy |
| Coolant Through | No |
| Number of Flutes | 2 |
| Flute Length (Inch) | 1-5/8 |
| Primary Workpiece Material Code | P; S; K; M |
| Shank Diameter (Decimal Inch) | 0.4375 |
| Overall Length (mm) | 69.85 |
| Overall Length (Inch) | 2-3/4 |
| Overall Length (Decimal Inch) | 2.7500 |
| Spiral Type | Regular |
| Flute Length (mm) | 41.28 |
| Flute Length (Decimal Inch) | 1.6250 |
| Series | HX10-HX15-HX18 |
| Tool Application | Drilling |
| Flute By Diameter Ratio | 14xD |
| Maximum Drilling Depth (Decimal Inch) | 1.6250 |
| Maximum Drilling Depth (Inch) | 1-5/8 |
| Shank Length (Decimal Inch) | 1.1250 |
| Shank Length (Inch) | 1-1/8 |
| Number of Flats | 0 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Tool Performance | General Purpose |
| Standards | ANSI |
| Double Margin | No |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.1000 - 0.1500 |
| Specification Designation | ANSI |
| UNSPSC Code | 23241634 |
| Country of Origin | Brazil |
