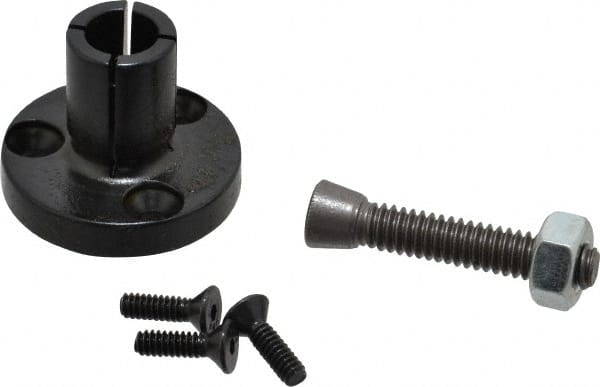

Mitee-Bite - 0.48 to 0.56" Expansion Diam, 1,900 Lb Holding Force, 6-32 Mounting Screw, 1/4-20 Center Screw, Mild Steel ID Expansion Clamps
Item #: 88894365
Brand: Mitee-Bite
Model #: 31100
Product Specifications
| Flange Diameter (Decimal Inch) | 1.2400 |
| Maximum Expansion Diameter (Decimal Inch) | 0.5600 |
| Minimum Expansion Diameter (Decimal Inch) | 0.4800 |
| Holding Force (Lb.) | 1900.00 |
| Center Screw Thread Size | 1/4-20 |
| Mounting Screw Thread Size | 6-32 |
| Material | Mild Steel |
| Mount Hole Diameter (Decimal Inch) | 0.9100 |
| Flange Thickness (Decimal Inch) | 0.2300 |
| Expansion Height (Decimal Inch) | 0.5900 |
| Height Above Flange (Decimal Inch) | 0.7500 |
| Overall Height (Decimal Inch) | 0.9800 |
| Number of Mount Holes | 3 |
| Thread Length Below Base (Decimal Inch) | 0.5000 |
| Torque (Ft/Lb) | 13.30 |
