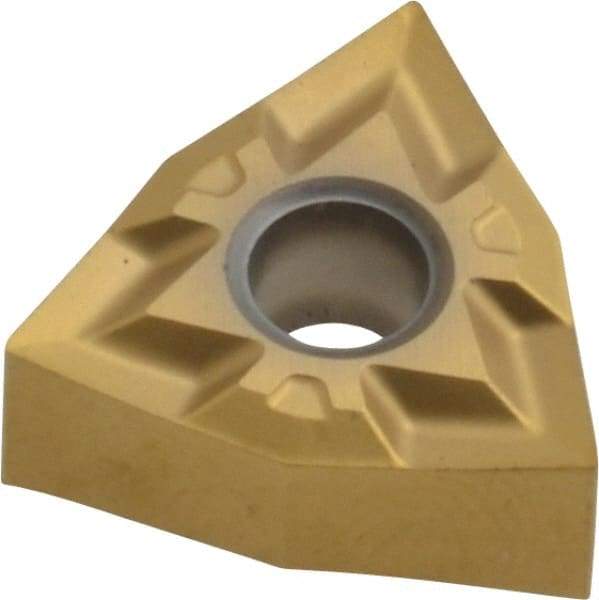

Seco - WNGP330.5 MF1 Grade CP200 Carbide Turning Insert - TiAlN/TiN Finish, 80° Trigon, 3/8" Inscr Circle, 3/16" Thick, 0.008" Corner Radius
Item #: 88876933
Brand: Seco
Model #: 72302
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WNGP |
| Insert Size | 330.5 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | CP200 |
| Coating | TiAlN/TiN |
| Material Grade | Micrograin |
| Chip Breaker | MF1 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | PVD |
| Primary Workpiece Material | S; M |
| Secondary Workpiece Material | P |
| Included Angle | 80 |
| Insert Holding Method | Pin & Clamp |
| Shape | Trigon |
