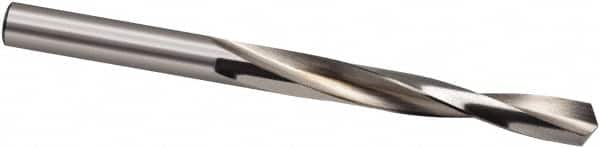

Jobber Length Drill Bit: 0.2969″ Dia, 118 °, High Speed Steel Bright/Uncoated, Right Hand Cut, Spiral Flute
Item #: 88660410
Brand: Guhring
Model #: 9002060075400
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.2969 |
| Drill Bit Size (Inch) | 19/64 |
| Drill Bit Material | High Speed Steel |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Bright |
| Drill Point Angle (Degrees) | 118 |
| Spiral Type | Slow |
| Flute Type | Spiral |
| Point Type | Cone Relief |
| Coolant Through | No |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2969 |
| Overall Length (mm) | 117.00 |
| Flute Length (mm) | 75.00 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 7.54 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.2500 - 0.3000 |
| Specification Designation | DIN |
