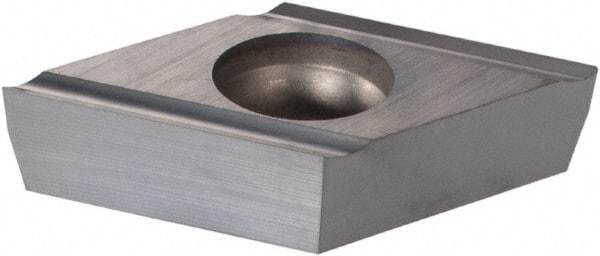

Ingersoll Cutting Tools - DCET32.50 GF Grade TT9020 Carbide Turning Insert - 55° Diamond, 3/8" Inscr Circle, 5/32" Thick, 0.008" Corner Radius
Item #: 88632492
Brand: Ingersoll Cutting Tools
Model #: 5517346
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DCET |
| Insert Size | 32.50 |
| Material | Carbide |
| Length (Decimal Inch) | 0.4450 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1560 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | TT9020 |
| Chip Breaker | GF |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Rake | Positive |
| Relief Angle | 7 |
| Included Angle | 55 |
| Insert Hand | Right Hand |
| Insert Holding Method | Screw |
| Shape | Diamond |
