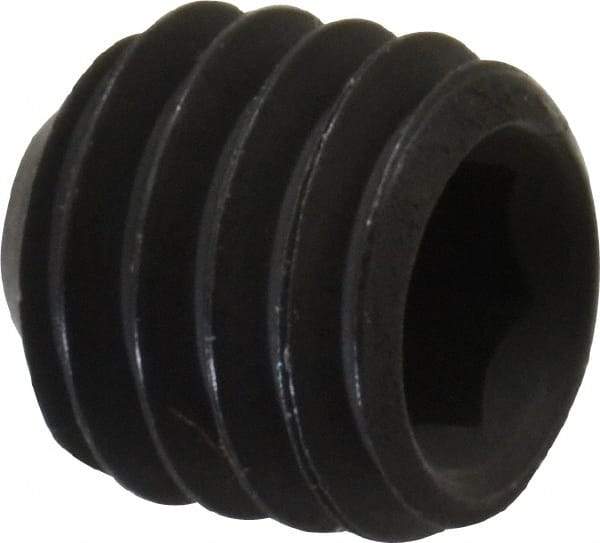

Value Collection - #10-32 UNF, 3/16" OAL, Cup Point Set Screw - Grade 8 Steel, 3/32" Key
Item #: 88547443
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Cup points have a cup-shaped indentation at the end of the set screw s tapered point. The internal cup grips surfaces, resists deformation and reduces stress. Cup points work well with soft materials that cannot take high torque.
Hex socket drive types have a hex-shaped recess in the head and are driven with hex keys or hex socket bits. The driving surface is protected from external damage and provides six sides of contact surface for added torque.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Point Type | Cup |
| Thread Size (Inch) | #10-32 |
| Length (Inch) | 3/16 |
| Drive Type | Hex Socket |
| Material Grade | 8 |
| Material | Steel |
| Finish/Coating | Black Oxide |
| Thread Standard | UNF |
| Length Measurement Type | Overall Length |
| Hex Key Size (Inch) | 3/32 |
