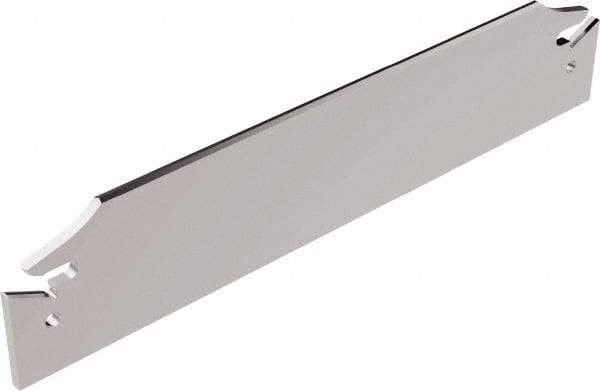

Seco - 1.2" Blade Height, 0.222" Blade Width, 5.91" OAL, Neutral Cut, Double End Indexable Cut-Off Blade - 150.10A Blade, 150.10 Series
Item #: 88499108
Brand: Seco
Model #: 33055
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Double |
| Cutting Direction | Neutral |
| Blade Height (Decimal Inch) | 1.2000 |
| Blade Width (Decimal Inch) | 0.2220 |
| Blade Overall Length (Decimal Inch) | 5.9100 |
| Blade Style | 150.10A |
| Insert Width (Decimal Inch) | 0.2500 |
| Series | 150.10 |
| Insert Seat Size | 6 |
| Tool Block/Toolholder Style | 150.10-25 |
| Insert Holding Method | Self Grip |
| Maximum Workpiece Diameter (Decimal Inch) | 5.6000 |
| Cutting Height (Decimal Inch) | 0.9840 |
| Insert Corner Radius (Decimal Inch) | 0.0120 |
| Complete Insert Compatibility | 150.10-6.. |
| Complete Tool Block/Toolholder Style Compatibility | 150.10-...-25 |
