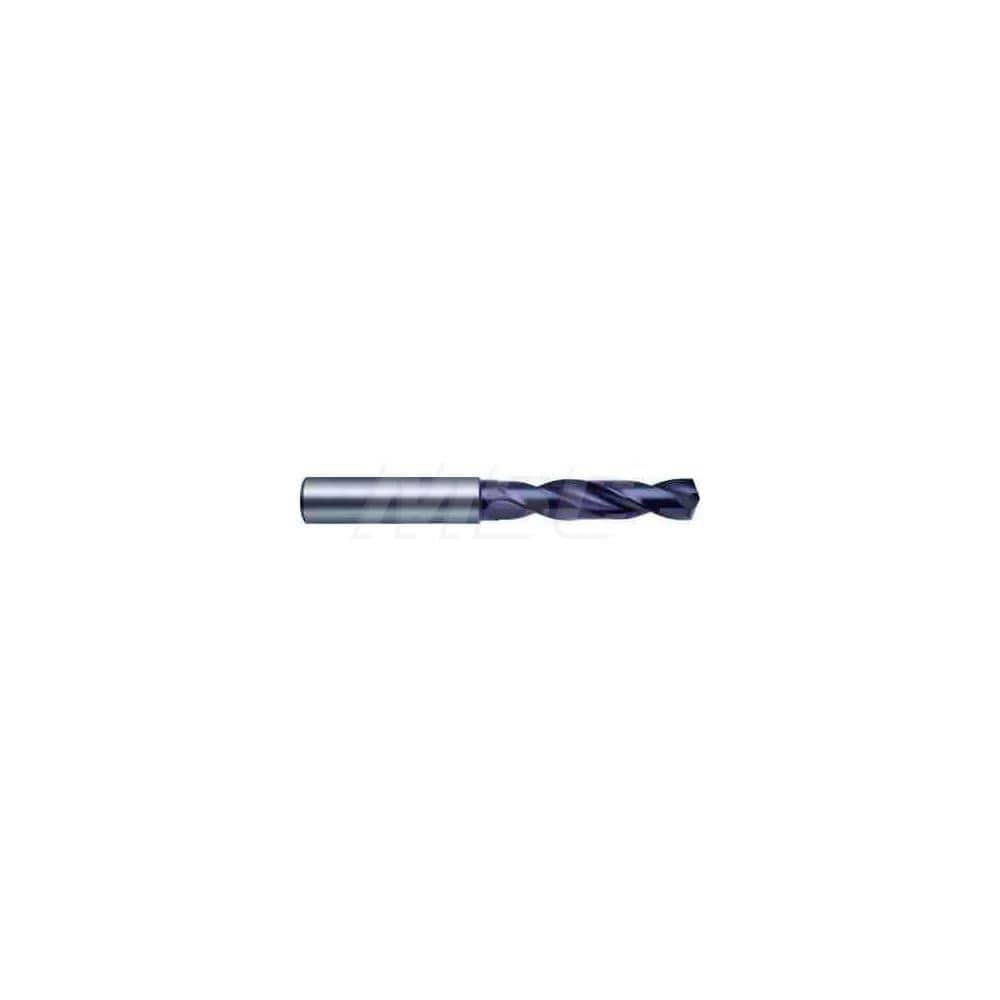

Screw Machine Length Drill Bit: 0.368″ Dia, 140 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 5514
Item #: 88290846
Brand: Guhring
Model #: 9055140093400
Product Specifications
| Drill Bit Size (Letter) | U |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | SU |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Drill Bit Size (Decimal Inch) | 0.3680 |
| Drill Tip Finish/Coating | FIREX |
| Overall Length (mm) | 89.00 |
| Overall Length (Decimal Inch) | 3.5039 |
| Shank Diameter (mm) | 10.00 |
| Series | 5514 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 1.2990 |
| Maximum Drilling Depth (mm) | 32.99 |
| Shank Length (Decimal Inch) | 1.6535 |
| Shank Length (mm) | 42.00 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0.006 to +0.021 mm |
| Standards | DIN 6537 K |
| Flute Length (Decimal Inch) | 1.8504 |
| Flute Length (mm) | 47.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.3500 to 0.4000 |
| Specification Number | DIN 6537K |
| Specification Designation | DIN |
| Material Grade | DK460UF |
 | |
| MSC Part # | 88290846 |
| Mfr Part # | 9055140093400 |
| Country of OriginCountry of Origin is subject to change | Germany |
