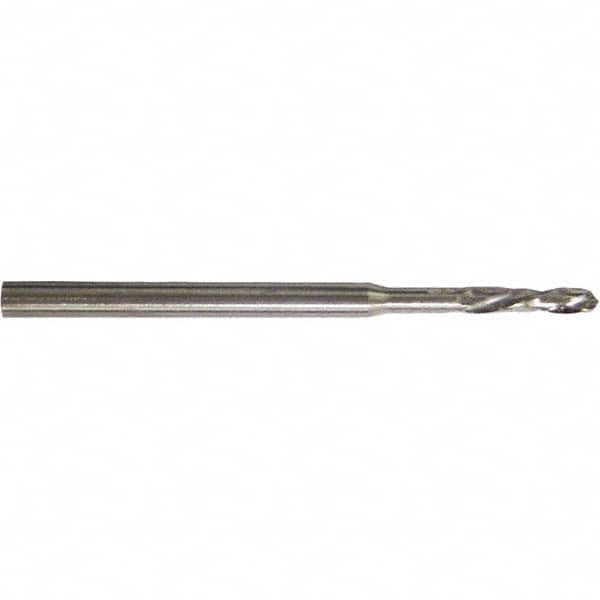

Micro Drill Bit: 0.0248″ Dia, 118 °, Cobalt Bright/Uncoated, 0.9843″ OAL, LH Cut, Spiral Flute, Straight-Cylindrical Shank, Series 303
Item #: 88290598
Brand: Guhring
Model #: 9003030006300
Product Specifications
| Drill Bit Size (mm) | 0.63 |
| Drill Bit Size (Decimal Inch) | 0.0248 |
| Tool Material | Cobalt |
| Flute Length (mm) | 4.20 |
| Coating/Finish | Bright/Uncoated |
| Coolant Through | No |
| Drill Point Angle | 118 |
| Cutting Direction | Left Hand |
| Series | 303 |
| Overall Length (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 25.00 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | Standard |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance | 0.000 to -0.004 mm |
| Shank Diameter (mm) | 1.00 |
| Material Grade | M35 |
| Drill Bit Grade | High Performance |
| Spiral Type | Regular |
| Specification Number | DIN 1899 |
