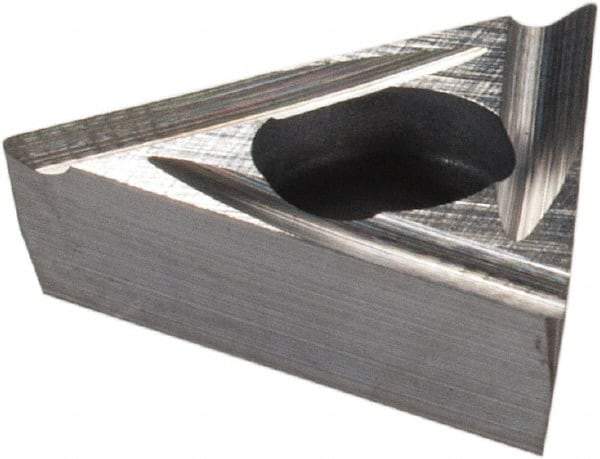

Komet - TOHX090202 G20 Grade K10 Carbide Boring Insert - Uncoated, 60° Triangle, 8° Relief Angle, 5.6mm Inscr Circle, 2.5mm Thick, 0.2mm Corner Radius
Item #: 88238944
Brand: Komet
Model #: W30142000221
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, steel, plastic and other tough-to-machine materials. Application is determined by material grade.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | TOHX |
| Insert Size | 090202 |
| Manufacturer's Grade | K10 |
| Inscribed Circle (mm) | 5.60 |
| Inscribed Circle (Decimal Inch) | 0.2205 |
| Thickness (mm) | 2.50 |
| Thickness (Decimal Inch) | 0.0984 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Coating | Uncoated |
| Chipbreaker | G20 |
| Length (mm) | 2.50 |
| Length (Decimal Inch) | 0.0984 |
| Rake | Positive |
| Rake Angle | 20 |
| Relief Angle | 8 |
| Included Angle | 60 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Insert Holding Method | Screw |
| Shape | Triangle |
