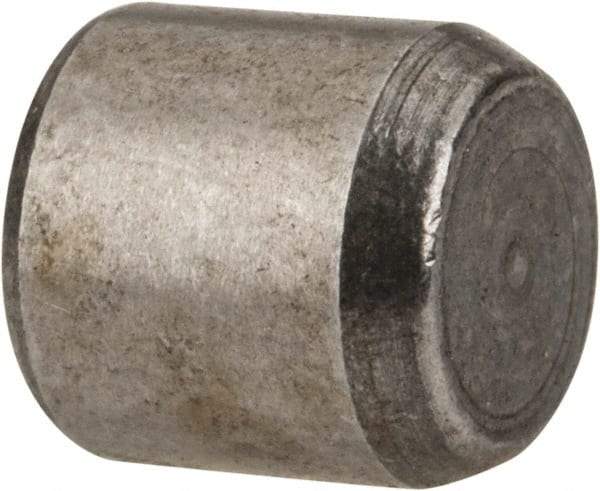

Made in USA - 1/4" Diam x 1/4" Pin Length 416 Stainless Steel Precision Dowel Pin - Passivated Finish, C 36-42 Hardness, 2 Beveled End
Item #: 88231907
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Precision types are effective in interference fit applications. The dowel pin is specially designed based on hole size, tolerance and ductility.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Precision |
| Material | Stainless Steel |
| Pin Diameter (Inch) | 1/4 |
| Pin Length (Decimal Inch) | 0.2500 |
| Pin Length (Inch) | 1/4 |
| Hardness | C 36-42 |
| Material Grade | 416 |
| Finish/Coating | Passivated |
| System of Measurement | Inch |
| End Type | (2) Beveled |
| Diameter Tolerance (Decimal Inch) | 0.0000 to 0.0002 |
