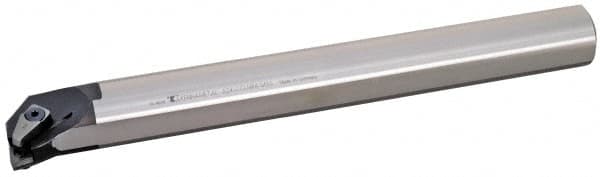

Kennametal - 59mm Min Bore Diam, 16" OAL, 2" Shank Diam, A-CCLN-MX Indexable Boring Bar - CN.X Insert, Clamp Holding Method
Item #: 88230321
Brand: Kennametal
Model #: 1541743
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-CCLN-MX |
| Series | Top Notch |
| Minimum Bore Diameter (mm) | 59.00 |
| Minimum Bore Diameter (Decimal Inch) | 2.3230 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 406.40 |
| Overall Length (Inch) | 16 |
| Overall Length (Decimal Inch) | 16.0000 |
| Shank Diameter (mm) | 50.80 |
| Shank Diameter (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Insert Compatibility | CN.X |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Lead Angle | 5 |
| Center to Cutting Edge (Decimal Inch) | 1.2810 |
| Insert Thickness (Inch) | 5/16 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Rake Angle | 5 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| Complete Insert Compatibility | CN.X 452 |
| Toolholder Material | Steel |
