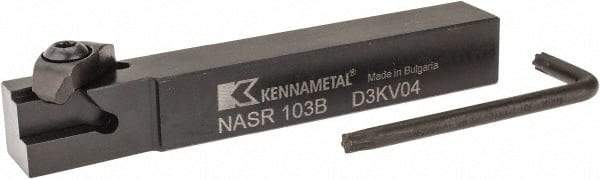

Kennametal - Internal/External Thread, Right Hand Cut, 5/8" Shank Width x 5/8" Shank Height Indexable Threading Toolholder - 4-1/2" OAL, N.3R Insert Compatibility, NAS Toolholder, Series Top Notch
Item #: 88228770
Brand: Kennametal
Model #: 1095668
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal/External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 15.88 |
| Shank Width/Diameter (Decimal Inch) | 0.6250 |
| Shank Width/Diameter (Inch) | 5/8 |
| Shank Height (Inch) | 5/8 |
| Shank Height (mm) | 15.88 |
| Shank Height (Decimal Inch) | 0.6250 |
| Overall Length (Decimal Inch) | 4.5000 |
| Overall Length (mm) | 114.30 |
| Overall Length (Inch) | 4-1/2 |
| Insert Compatibility | N.3R |
| Series | Top Notch |
| Toolholder Style | NAS |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Threading |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6250 |
| Maximum Depth of Cut (mm) | 5.33 |
| Maximum Depth of Cut (Decimal Inch) | 0.2100 |
| Head Length (Decimal Inch) | 1.3000 |
