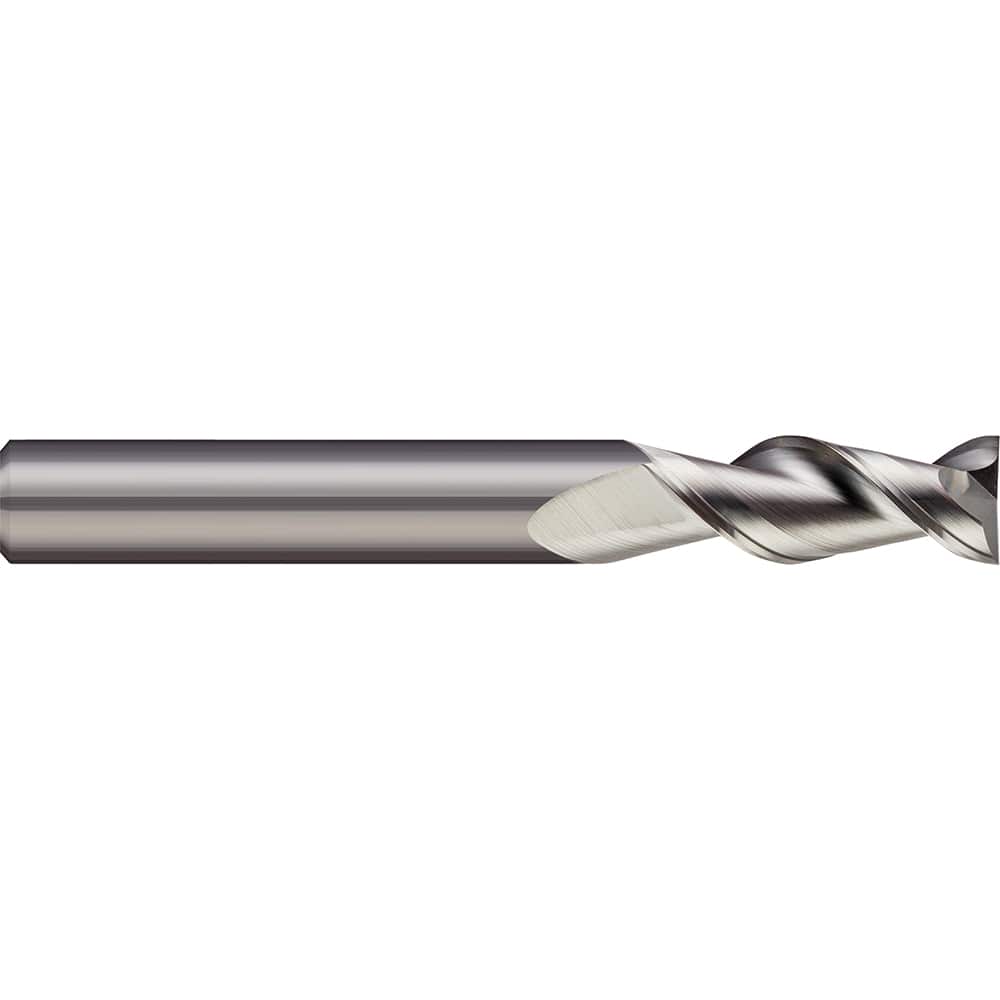

Micro 100 - Square End Mills; Mill Diameter (mm): 8.00 ; Mill Diameter (Decimal Inch): 0.3150 ; Length of Cut (mm): 25.0000 ; Length of Cut (Decimal Inch): 0.9843 ; Material: Solid Carbide ; Finish/Coating: Uncoated
Item #: 88091400
Brand: Micro 100
Model #: ARMM-080-3
Product Specifications
Square End Mills; Mill Diameter (mm): 8.00 ; Mill Diameter (Decimal Inch): 0.3150 ; Length of Cut (mm): 25.0000 ; Length of Cut (Decimal Inch): 0.9843 ; Material: Solid Carbide ; Finish/Coating: Uncoated
| Mill Diameter (mm) | 8.00 |
| Mill Diameter (Decimal Inch) | 0.3150 |
| Length of Cut (mm) | 25.0000 |
| Length of Cut (Decimal Inch) | 0.9843 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Shank Diameter (mm) | 8.0000 |
| Single or Double End | Single |
| Overall Length (mm) | 63.0000 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 45 |
| Variable Helix | No |
| Helix Style | High |
| Series/List | End Mills for Aluminum Alloys - Square - 2 & 3 Flute |
