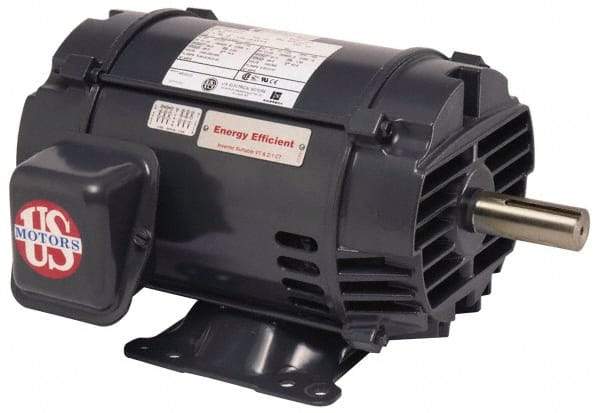

US Motors - 200 hp, ODP Enclosure, No Thermal Protection, 1,185 RPM, 460 Volt, 60 Hz, Three Phase Energy Efficient Motor - Size 445 Frame, Rigid Mount, 1 Speed, Ball Bearings, 234 Full Load Amps, F Class Insulation, CCW Lead End - Benchmark Tooling

US Motors - 200 hp, ODP Enclosure, No Thermal Protection, 1,185 RPM, 460 Volt, 60 Hz, Three Phase Energy Efficient Motor - Size 445 Frame, Rigid Mount, 1 Speed, Ball Bearings, 234 Full Load Amps, F Class Insulation, CCW Lead End


Item #: 87961447
Brand: US Motors
Model #: D200E3F
Exact Tooling IR#: 04

Product Specifications
Motor Type Three Phase Energy Efficient
Type of Enclosure ODP
Horsepower 200
Thermal Protection Rating None
Name Plate RPMs 1185
Voltage 460
Frequency Hz 60
Frame Size 445
Mount Type Rigid
Number of Speeds 1
Bearing Type Ball
Applications General Purpose
Full Load Amperage 234
Insulation Class F
Frame Material Steel
Overall Length (Decimal Inch) 39.7500
Full Load Efficiency Rating 94.5
Service Factor Rating 1.15
Motor Rotation CCW Lead End
PSC Code 6105
$19,782.49
