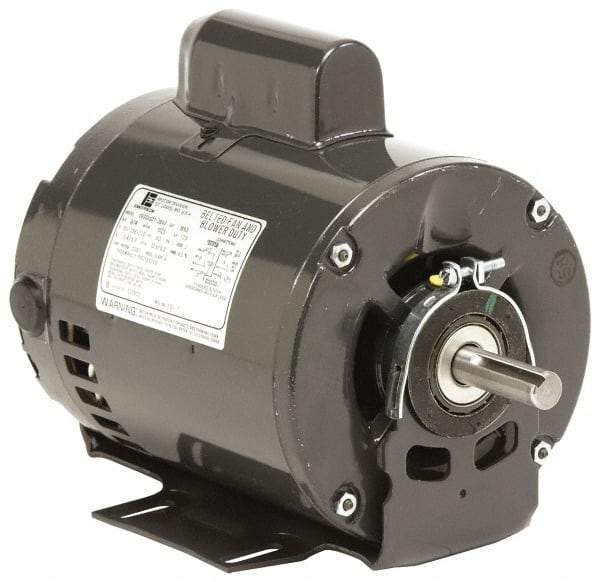

US Motors - 1.5 hp, ODP Enclosure, No Thermal Protection, 1,725 RPM, 208-230/460 Volt, 60 Hz, Three Phase Standard Efficient Motor - Size 145 Frame, Cradle Mount, 1 Speed, Ball Bearings, 5-4.6/2.4 Full Load Amps, B Class Insulation, Reversible
Item #: 87960878
Brand: US Motors
Model #: 8491
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Standard Efficient |
| Type of Enclosure | ODP |
| Horsepower | 1-1/2 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1725 |
| Voltage | 208-230/460 |
| Frequency Hz | 60 |
| Frame Size | 145 |
| Mount Type | Cradle |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | HVAC |
| Full Load Amperage | 5-4.6/2.4 |
| Insulation Class | B |
| Frame Material | Steel |
| Overall Length (Decimal Inch) | 13.2000 |
| Full Load Efficiency Rating | 60.7 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
