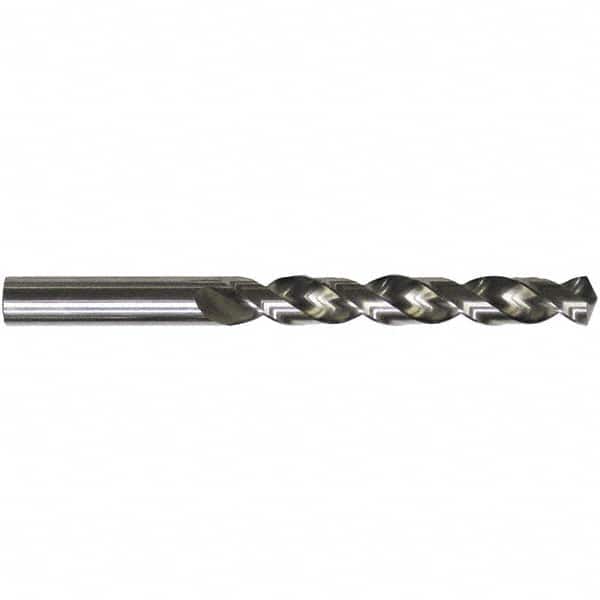

Jobber Length Drill Bit: 0.4016″ Dia, 130 °, High Speed Steel Bright/Uncoated, 5.2362″ OAL, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank
Item #: 87894382
Brand: Guhring
Model #: 9002070102000
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.4016 |
| Drill Bit Size (mm) | 10.20 |
| Drill Bit Material | High Speed Steel |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Bright |
| Drill Point Angle (Degrees) | 130 |
| Spiral Type | Fast |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.4016 |
| Overall Length (mm) | 133.00 |
| Overall Length (Decimal Inch) | 5.2362 |
| Flute Length (mm) | 87.00 |
| Flute Length (Decimal Inch) | 3.4252 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 10.20 |
| Maximum Drilling Depth (Decimal Inch) | 3.4252 |
| Maximum Drilling Depth (mm) | 87.00 |
| Shank Length (mm) | 46.00 |
| Shank Length (Decimal Inch) | 1.8110 |
| Drill Bit Diameter Tolerance | +0.000 to -0.027 mm |
| Web Configuration | Tapered |
| Specification Number | DIN 338 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.4000 - 0.5000 |
| Drill Bit Size Range (mm) | 10.00 - 12.50 |
| Material Grade | M2 |
| Specification Designation | DIN |
