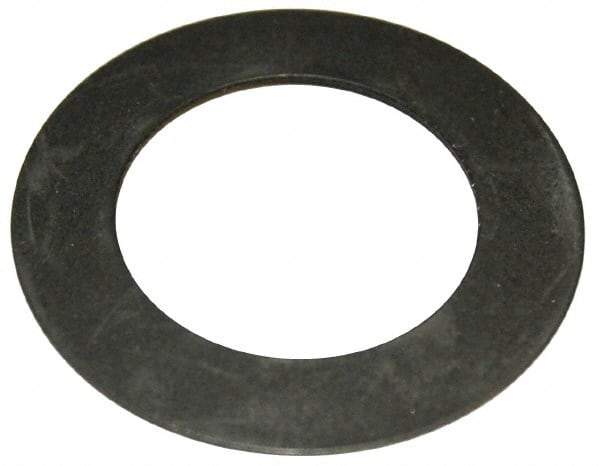

Gardner Spring - 3.366" ID, Grade 1074 Steel, Belleville Disc Spring for Ball Bearing - 4.685" OD, 0.11" High, 0.049" Thick
Item #: 87780896
Brand: Gardner Spring
Model #: BB-43
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs for ball bearings are used in preloading applications to ensure proper positioning and fit of bearings.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring for Ball Bearings |
| System of Measurement | Metric |
| Inside Diameter (Decimal Inch) | 3.3660 |
| Inside Diameter (mm) | 85.50 |
| Material | Steel |
| Material Grade | 1074 |
| Outside Diameter (Decimal Inch) | 4.6850 |
| Outside Diameter (mm) | 119.00 |
| Thickness (mm) | 1.24 |
| Thickness (Decimal Inch) | 0.0490 |
| Overall Height (mm) | 2.79 |
| Overall Height (Decimal Inch) | 0.1100 |
| Deflection (Decimal Inch) | 0.0460 |
| Deflection (mm) | 1.17 |
| Load at Deflection (Lb.) | 88.35 |
| Load at Deflection (N) | 393.00 |
| Ball Bearing Number | 6213 |
