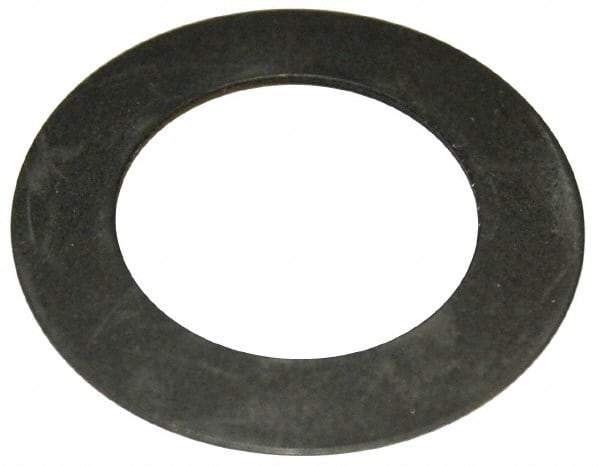

Gardner Spring - 2.972" ID, Grade 1074 Steel, Belleville Disc Spring for Ball Bearing - 3.72" OD, 0.087" High, 0.0394" Thick
Item #: 87780870
Brand: Gardner Spring
Model #: BB-36
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs for ball bearings are used in preloading applications to ensure proper positioning and fit of bearings.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring for Ball Bearings |
| System of Measurement | Metric |
| Inside Diameter (Decimal Inch) | 2.9720 |
| Inside Diameter (mm) | 75.49 |
| Material | Steel |
| Material Grade | 1074 |
| Outside Diameter (Decimal Inch) | 3.7200 |
| Outside Diameter (mm) | 94.49 |
| Thickness (mm) | 1.00 |
| Thickness (Decimal Inch) | 0.0394 |
| Overall Height (mm) | 2.21 |
| Overall Height (Decimal Inch) | 0.0870 |
| Deflection (Decimal Inch) | 0.0350 |
| Deflection (mm) | 0.89 |
| Load at Deflection (Lb.) | 73.06 |
| Load at Deflection (N) | 325.00 |
| Ball Bearing Number | 6012 |
