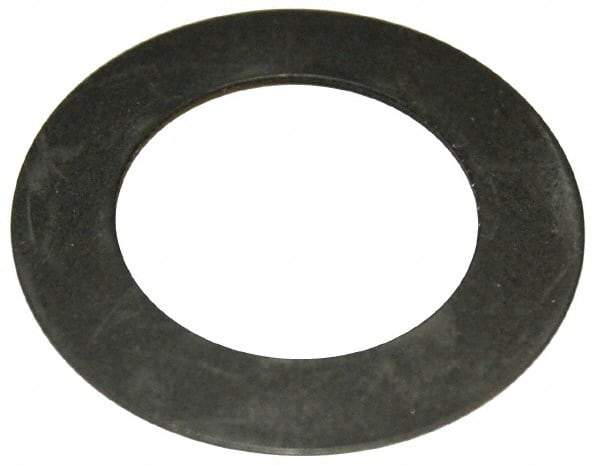

Gardner Spring - 1.201" ID, Grade 1074 Steel, Belleville Disc Spring for Ball Bearing - 1.831" OD, 0.059" High, 0.024" Thick
Item #: 87780722
Brand: Gardner Spring
Model #: BB-23
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs for ball bearings are used in preloading applications to ensure proper positioning and fit of bearings.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring for Ball Bearings |
| System of Measurement | Metric |
| Inside Diameter (Decimal Inch) | 1.2010 |
| Inside Diameter (mm) | 30.51 |
| Material | Steel |
| Material Grade | 1074 |
| Outside Diameter (Decimal Inch) | 1.8310 |
| Outside Diameter (mm) | 46.51 |
| Thickness (mm) | 0.61 |
| Thickness (Decimal Inch) | 0.0240 |
| Overall Height (mm) | 1.50 |
| Overall Height (Decimal Inch) | 0.0590 |
| Deflection (Decimal Inch) | 0.0270 |
| Deflection (mm) | 0.69 |
| Load at Deflection (Lb.) | 34.40 |
| Load at Deflection (N) | 153.00 |
| Ball Bearing Number | 6005; 6204; 6303 |
