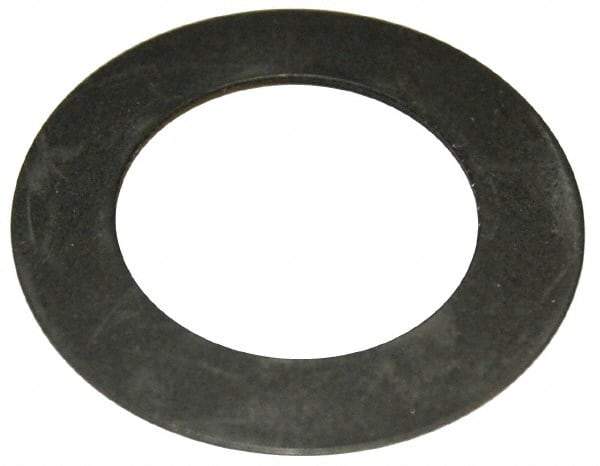

Gardner Spring - 0.803" ID, Grade 1074 Steel, Belleville Disc Spring for Ball Bearing - 1.362" OD, 0.043" High, 0.016" Thick
Item #: 87780672
Brand: Gardner Spring
Model #: BB-18
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs for ball bearings are used in preloading applications to ensure proper positioning and fit of bearings.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring for Ball Bearings |
| System of Measurement | Metric |
| Inside Diameter (Decimal Inch) | 0.8030 |
| Inside Diameter (mm) | 20.40 |
| Material | Steel |
| Material Grade | 1074 |
| Outside Diameter (Decimal Inch) | 1.3620 |
| Outside Diameter (mm) | 34.59 |
| Thickness (mm) | 0.41 |
| Thickness (Decimal Inch) | 0.0160 |
| Overall Height (mm) | 1.09 |
| Overall Height (Decimal Inch) | 0.0430 |
| Deflection (Decimal Inch) | 0.0210 |
| Deflection (mm) | 0.53 |
| Load at Deflection (Lb.) | 13.71 |
| Load at Deflection (N) | 61.00 |
| Ball Bearing Number | 6300 |
