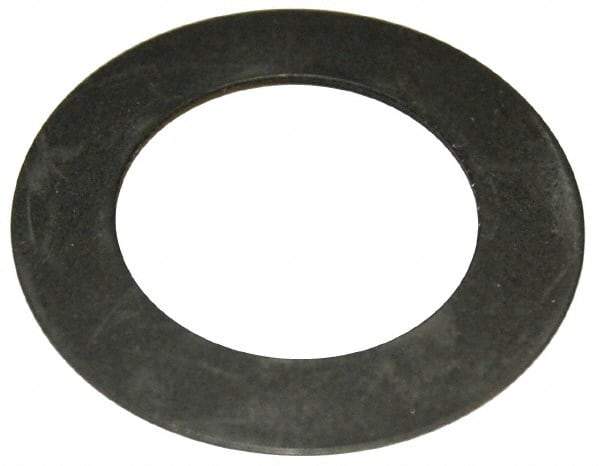

Gardner Spring - 0.402" ID, Grade 1074 Steel, Belleville Disc Spring for Ball Bearing - 0.74" OD, 0.028" High, 0.014" Thick
Item #: 87780607
Brand: Gardner Spring
Model #: BB-8
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs for ball bearings are used in preloading applications to ensure proper positioning and fit of bearings.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring for Ball Bearings |
| System of Measurement | Metric |
| Inside Diameter (Decimal Inch) | 0.4020 |
| Inside Diameter (mm) | 10.21 |
| Material | Steel |
| Material Grade | 1074 |
| Outside Diameter (Decimal Inch) | 0.7400 |
| Outside Diameter (mm) | 18.80 |
| Thickness (mm) | 0.36 |
| Thickness (Decimal Inch) | 0.0140 |
| Overall Height (mm) | 0.71 |
| Overall Height (Decimal Inch) | 0.0280 |
| Deflection (Decimal Inch) | 0.0100 |
| Deflection (mm) | 0.25 |
| Load at Deflection (Lb.) | 11.47 |
| Load at Deflection (N) | 51.00 |
| Ball Bearing Number | 607/EL7 |
