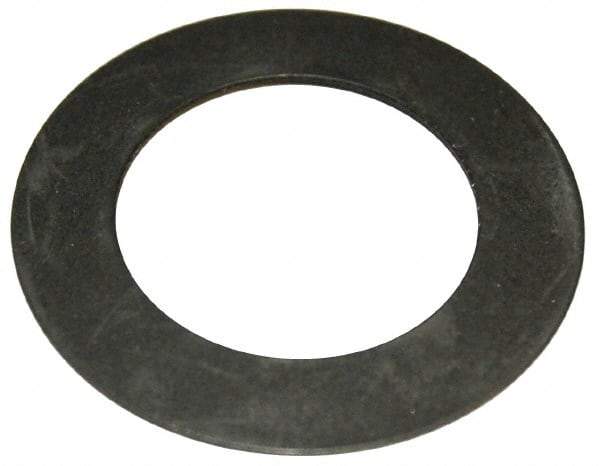

Gardner Spring - 0.228" ID, Grade 1074 Steel, Belleville Disc Spring for Ball Bearing - 0.366" OD, 0.016" High, 0.008" Thick
Item #: 87780508
Brand: Gardner Spring
Model #: BB-1
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs for ball bearings are used in preloading applications to ensure proper positioning and fit of bearings.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring for Ball Bearings |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.2280 |
| Inside Diameter (mm) | 5.79 |
| Material | Steel |
| Material Grade | 1074 |
| Outside Diameter (Decimal Inch) | 0.3660 |
| Outside Diameter (mm) | 9.30 |
| Thickness (mm) | 0.20 |
| Thickness (Decimal Inch) | 0.0080 |
| Overall Height (mm) | 0.41 |
| Overall Height (Decimal Inch) | 0.0160 |
| Deflection (Decimal Inch) | 0.0060 |
| Deflection (mm) | 0.15 |
| Load at Deflection (Lb.) | 5.71 |
| Load at Deflection (N) | 25.40 |
| Ball Bearing Number | R2 |
