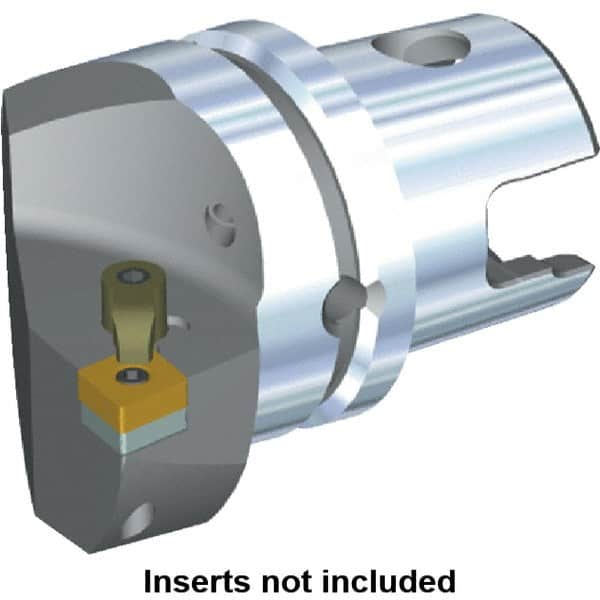

Kennametal - Right Hand Cut, Size KM63, CN.. Insert Compatiblity, Internal or External Modular Turning & Profiling Cutting Unit Head - 43mm Ctr to Cutting Edge, 60mm Head Length, Through Coolant, Series M-Clamping
Item #: 87766358
Brand: Kennametal
Model #: 1603738
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM63 |
| Series Name | M-Clamping |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 60.00 |
| Head Length/Projection (Decimal Inch) | 2.3622 |
| Insert Style | CN.. |
| Internal or External | Internal or External |
| Center to Cutting Edge (mm) | 43.00 |
| Center to Cutting Edge (Decimal Inch) | 1.6929 |
| Insert Holding Method | Clamp |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 86.00 |
| Minimum Hole Diameter (Decimal Inch) | 3.3858 |
| Complete Insert Compatibility | CN..543; CN..160612 |
