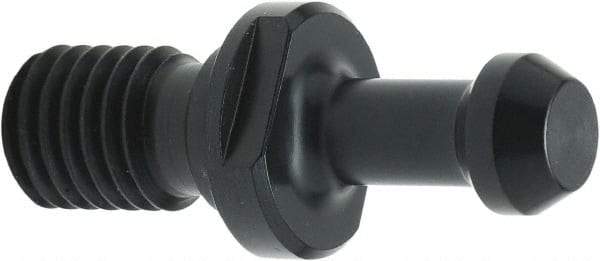

Parlec - BT40 Taper, M16x2 Thread, 45° Angle Radius, Standard Retention Knob - 1.85" OAL, 0.74" Knob Diam, 3/4" from Knob to Flange, 9/32" Coolant Hole, Through Coolant
Item #: 87697223
Brand: Parlec
Model #: MZ40TRK
Exact Tooling IR#: 04
Features and Benefits
Retention knobs, also known as pull studs, are threaded components that enable the mounting of a toolholder to the spindle of a CNC milling machine. Retention knobs are held in the machine by a clamp or spring.
| Product Specifications | |
|---|---|
| Type | Standard |
| Taper Size | BT40 |
| Thread Size | M16x2 |
| Angle Radius | 45.00 |
| Knob Diameter (Decimal Inch) | 0.7400 |
| Through Coolant | Yes |
| Neck Diameter (Decimal Inch) | 0.4900 |
| Overall Length (Decimal Inch) | 1.8500 |
| Knob to Flange Length (Decimal Inch) | 0.7520 |
| Coolant Hole Diameter (Decimal Inch) | 0.2810 |
