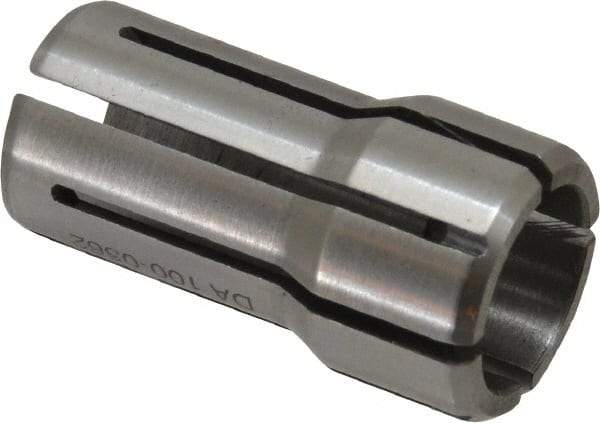

Parlec - 9/16 Inch, 35/64 to 9/16 Inch Collet Capacity, Series DA100 Double Angle Collet - 1-7/16 Inch Overall Length, 0.769 Inch Overall Diameter
Item #: 87693289
Brand: Parlec
Model #: DA100-0562
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | DA Collet |
| Collet Series | DA100 |
| Size (Inch) | 9/16 |
| Size (Decimal Inch) | 0.5625 |
| Overall Length (Decimal Inch) | 1.4370 |
| Overall Diameter (Decimal Inch) | 0.7690 |
| Minimum Collet Capacity (Decimal Inch) | 0.5469 |
| Maximum Collet Capacity (Decimal Inch) | 0.5625 |
| PSC Code | 5136 |
