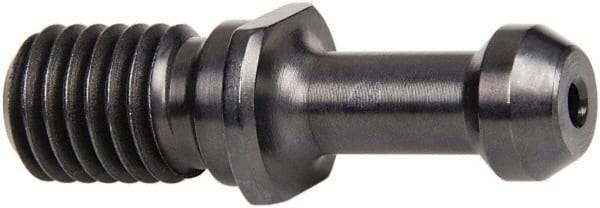

Parlec - C Style, CAT40 Taper, 5/8-11 Thread, 45° Angle Radius, Standard Retention Knob - 2.3" OAL, 0.588" Knob Diam, 0.13" Flange Thickness, 1.268" from Knob to Flange, 0.635" Pilot Diam, 0.157" Coolant Hole, Through Coolant
Item #: 87683934
Brand: Parlec
Model #: 4005TRKC
Exact Tooling IR#: 04
Features and Benefits
Retention knobs, also known as pull studs, are threaded components that enable the mounting of a toolholder to the spindle of a CNC milling machine. Retention knobs are held in the machine by a clamp or spring.
| Product Specifications | |
|---|---|
| Type | Standard |
| Taper Size | CAT40 |
| Thread Size | 5/8-11 |
| Angle Radius | 45.00 |
| Knob Diameter (Decimal Inch) | 0.5880 |
| Through Coolant | Yes |
| Style | C |
| Neck Diameter (Decimal Inch) | 0.3930 |
| Pilot Diameter (Decimal Inch) | 0.6350 |
| Overall Length (Decimal Inch) | 2.3000 |
| Knob to Flange Length (Decimal Inch) | 1.2680 |
| Flange Thickness (Decimal Inch) | 0.1300 |
| Coolant Hole Diameter (Decimal Inch) | 0.1570 |
