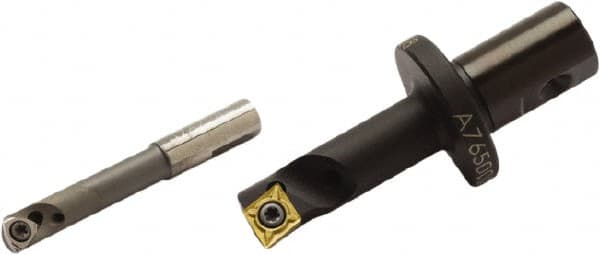

Seco - 8mm Min Bore Diam, 11.99mm Shank Diam, Indexable Boring Bar - 22mm Max Bore Depth, WB.. 0301.. Insert, Screw Holding Method
Item #: 87679619
Brand: Seco
Model #: 35476
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 0.3150 |
| Minimum Bore Diameter (mm) | 8.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.3150 |
| Maximum Bore Depth (mm) | 22.00 |
| Maximum Bore Depth (Decimal Inch) | 0.8660 |
| Shank Diameter (mm) | 11.99 |
| Shank Diameter (Decimal Inch) | 0.4720 |
| Insert Compatibility | WB.. 0301.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Maximum Bore Diameter (mm) | 10.01 |
| Maximum Bore Diameter (Decimal Inch) | 0.3940 |
| Maximum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 0.3940 |
| Center to Cutting Edge (mm) | 3.89 |
| Center to Cutting Edge (Decimal Inch) | 0.1530 |
| Complete Insert Compatibility | WB.. 0301.. |
| Toolholder Material | Steel |
