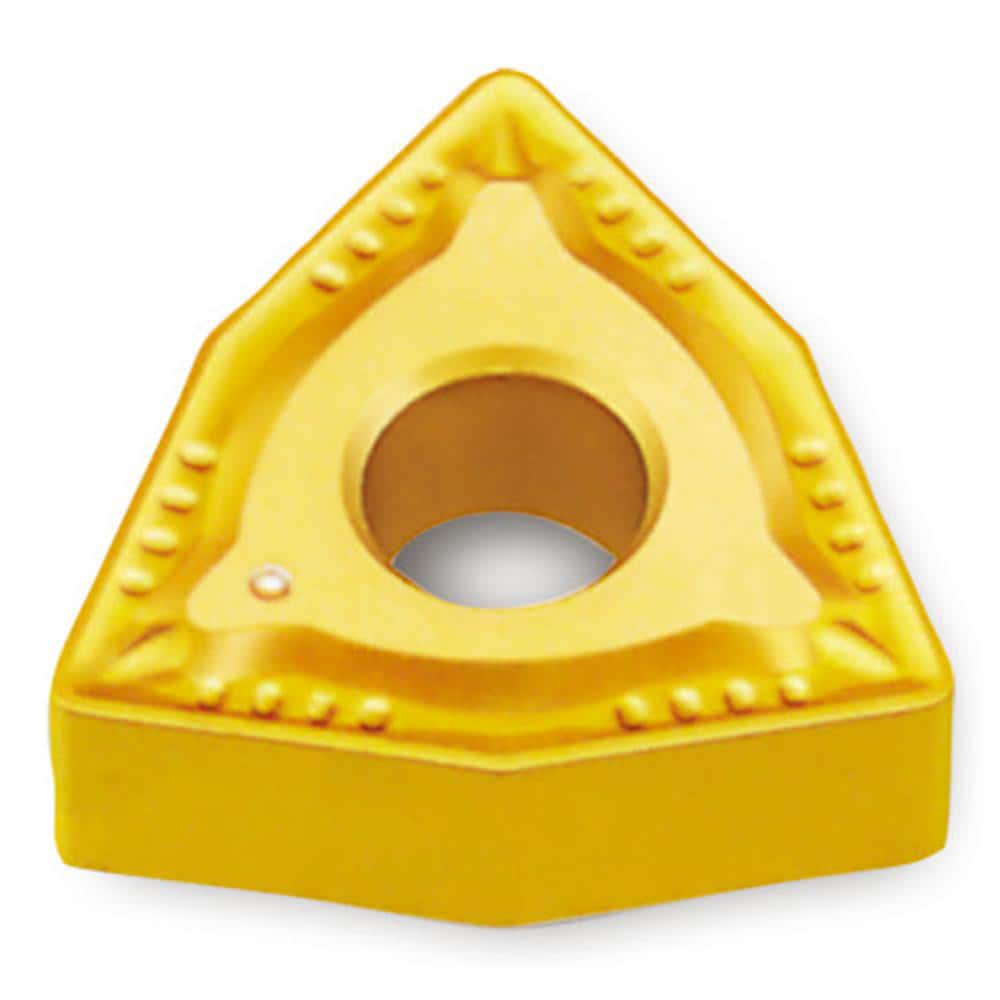

Turning Insert: WNMG432WT TT5100, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 0.3430″ Long, 1/2″ Inscribed Circle, 0.0310″ Corner Radius, 80.0 ° N/A Trigon, Series WNMG
Item #: 87515615
Brand: Ingersoll Cutting Tools
Model #: 5514949
Product Specifications
| Insert Style | WNMG |
| Insert Shape Code | W |
| Insert Size Code | 432 |
| Insert Shape | Trigon |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT5100 |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Width (Inch) | 1/2 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | WNMG |
| Coating Process | CVD |
| Rake | Negative |
| Wiper Edge | Yes |
| Insert Length (Decimal Inch) | 0.3430 |
| Number Of Cutting Edges | 6 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Ansi Code | WNMG432WTTT5100 |
| Iso Code | WNMG080408WT TT5100 |
| Chip Breaker | WT |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Coating/Finish | TiCN; TiN; Al2O3 |
