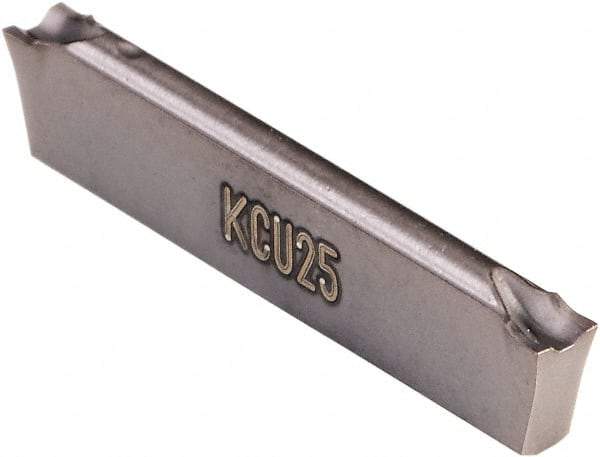

Kennametal - A4C0205 CF KCU25 Grade, 0.0783" Cutting Width, Carbide Cutoff Insert - 6° Left Hand Lead Angle, 0.008" Cnr Rad, AlTiN Coated, Double End
Item #: 87336392
Brand: Kennametal
Model #: 4113710
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | A4C |
| Insert Size | 0205 |
| Lead Angle Direction | Left Hand |
| Lead Angle | 6 |
| Cutting Width (mm) | 1.99 |
| Cutting Width (Decimal Inch) | 0.0783 |
| Material Grade | C2/C6 |
| Manufacturer's Grade | KCU25 |
| Coating | AlTiN |
| Series | A4 |
| Relief Angle | 2 |
| Chipbreaker | CF |
| Full Radius | No |
| Coating Process | PVD |
| Overall Length (mm) | 20.03 |
| Overall Length (Decimal Inch) | 0.7886 |
| Cutting Height (mm) | 4.09 |
| Cutting Height (Decimal Inch) | 0.1610 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (mm) | 0.20 |
| Insert Holding Method | Clamp |
| Insert Seat Size | 2 |
