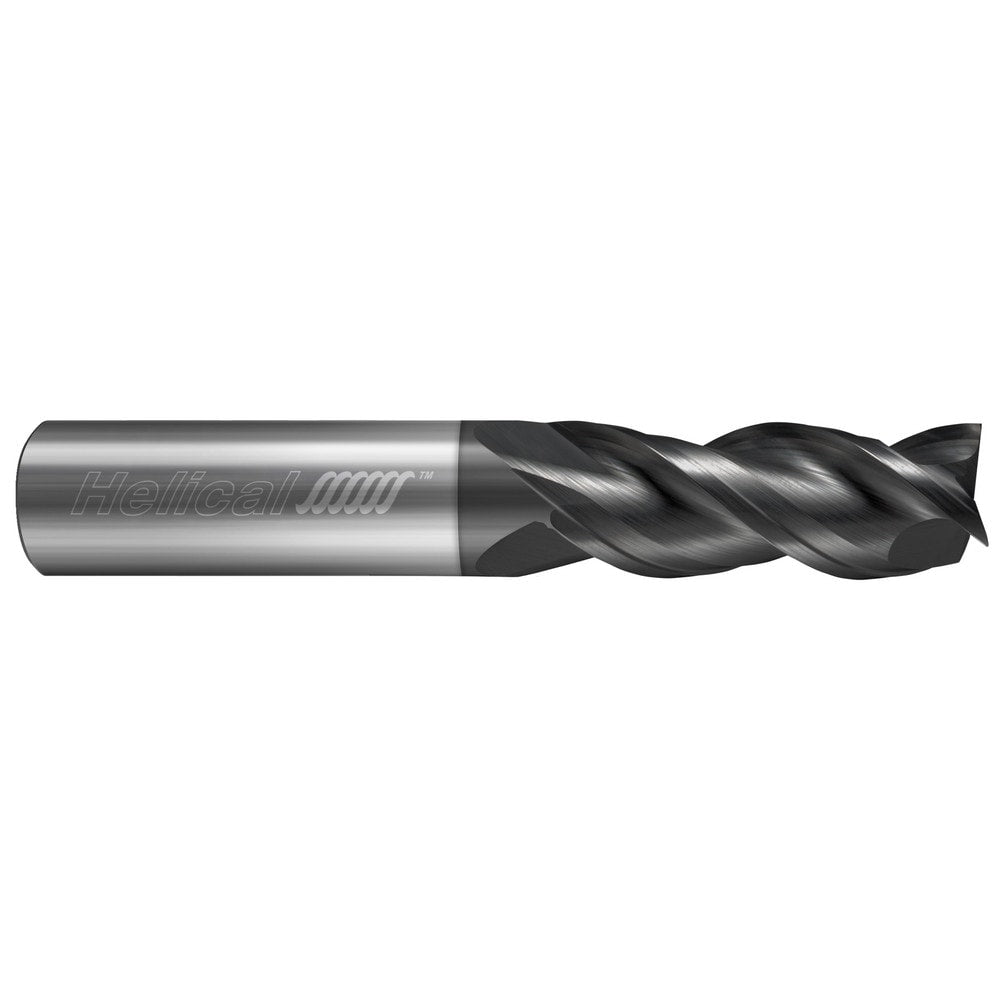

Square End Mill: 3 Flute, Solid Carbide
Item #: 83757492
Brand: Helical Solutions
Model #: 87864
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3750 |
| Mill Diameter (Inch) | 3/8 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.5000 |
| Length of Cut (Inch) | 1/2 |
| Length of Cut (mm) | 12.70 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Overall Length (Decimal Inch) | 2.0000 |
| Overall Length (Inch) | 2 |
| Single Or Double End | Single |
| Coating/Finish Family | Dplus |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 40 |
| Primary Workpiece Material | Aluminum & Non-Ferrous |
| Primary Workpiece Material Code | N |
| Coating/Finish | Dplus |
| Variable Helix | No |
| Variable Index | Yes |
| Chipbreaker | No |
| Flute Type | Helical |
| Shank Type | Straight |
| Material Grade | Solid Carbide |
| Series | End Mills for Aluminum - 3 Flute - Square - 40 deg Helix - Variable Pitch |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| Country of Origin | UNITED STATES |
