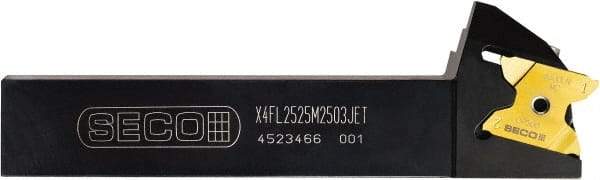

Seco - X4FL 1002503DJET, External, Left Hand, 0.169" Max Depth of Cut, 0.047" Min Groove Width, Indexable Grooving Tool Holder - X4GK25..L Insert Compatibility, 1" Shank Height, 1" Shank Width, 6" OAL, Through Coolant
Item #: 87255634
Brand: Seco
Model #: 88393
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1690 |
| Minimum Groove Width (Decimal Inch) | 0.0470 |
| Overall Length (Inch) | 6 |
| Toolholder Style | X4FL 1002503DJET |
| Insert Compatibility | X4GK25..L |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Height (Inch) | 1 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | X4 |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Cut-Off |
| Insert Holding Method | Clamp |
| Number of Inserts Used on Toolholder | 1 |
| Back of Bar to Cutting Edge (mm) | 28.00 |
| Head Height (Inch) | 1 |
| Head Length (Decimal Inch) | 1.4400 |
| Shank Length (Inch) | 6 |
| Toolholder Material | Steel |
