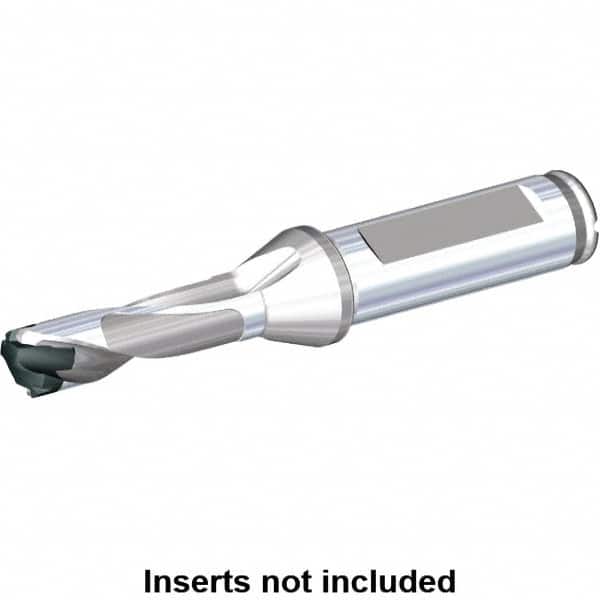

Kennametal - 9.53 to 9.99mm Diam, 3xD, 30mm Max Depth, 12.7mm Shank Diam, 1.659" Flute, 92.63mm OAL, Replaceable Tip Drill - I Seat Size, KTIP Toolholder, Series KenTIP
Item #: 87231411
Brand: Kennametal
Model #: 5307645
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 9.53 |
| Minimum Drill Diameter (Decimal Inch) | 0.3750 |
| Maximum Drill Diameter (mm) | 9.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.3933 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.1810 |
| Maximum Drill Depth (mm) | 30.00 |
| Shank Diameter (mm) | 12.70 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Seat Size | I |
| Toolholder Style | KTIP |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Tip Length (Decimal Inch) | 0.0650 |
| Flute Length (Decimal Inch) | 1.6590 |
| Overall Length (mm) | 92.63 |
| Overall Length (Decimal Inch) | 3.6470 |
| Toolholder Material | Steel |
| Shank Length (Decimal Inch) | 1.7700 |
