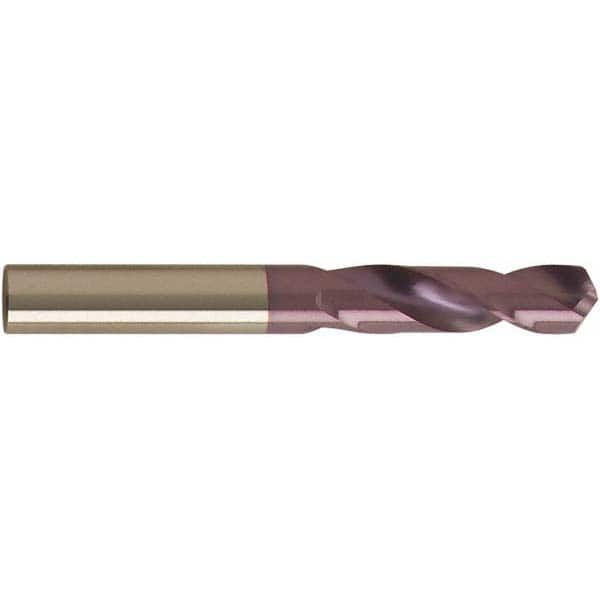

Screw Machine Length Drill Bit: 0.2205″ Dia, 118 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 2463
Item #: 87169306
Brand: Guhring
Model #: 9024630056000
Product Specifications
| Drill Bit Size (mm) | 5.60 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 118 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Faceted |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2205 |
| Drill Bit Size (Decimal Inch) | 0.2205 |
| Overall Length (mm) | 66.00 |
| Overall Length (Decimal Inch) | 2.5980 |
| Shank Diameter (mm) | 5.60 |
| Series | 2463 |
| Web Thinning | Web-Thinned |
| Drill Length Type | Stub |
| Maximum Drilling Depth (Decimal Inch) | 0.7720 |
| Maximum Drilling Depth (mm) | 19.60 |
| Shank Length (Decimal Inch) | 1.4961 |
| Shank Length (mm) | 38.00 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | General Purpose |
| Drill Bit Diameter Tolerance | +0.000 to -0.010 mm |
| Standards | DIN 6539 |
| Flute Length (Decimal Inch) | 1.1020 |
| Flute Length (mm) | 28.00 |
| Drill Bit Size Range (Decimal Inch) | 0.2000 to 0.2500 |
| Drill Bit Size Range (mm) | 5.00 to 6.50 |
| Specification Designation | DIN |
| Material Grade | K40 |
