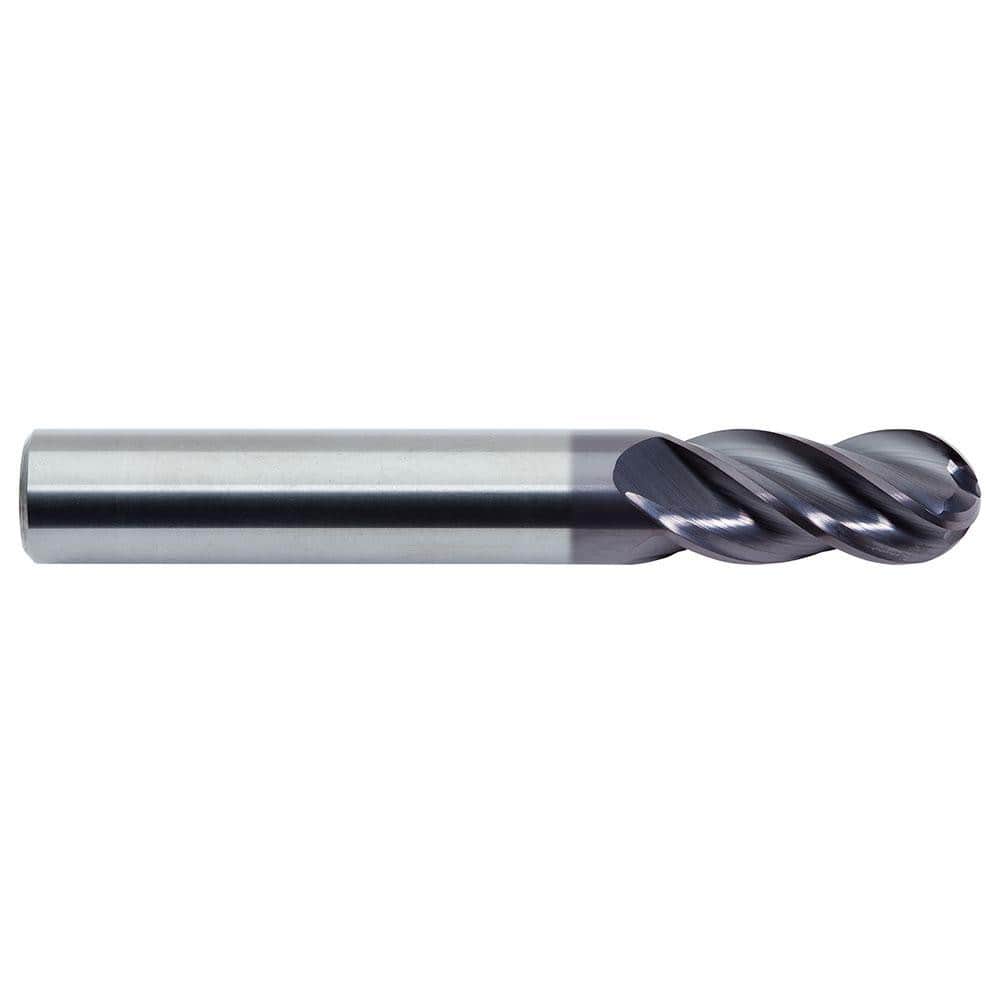

Ball End Mill: 0.3937″ Dia, 0.8661″ LOC, 4 Flute, Solid Carbide 72 mm OAL, 10 mm Shank Dia, AlTiN Coated, Single End, Series 179
Item #: 87137337
Brand: M.A. Ford?
Model #: 17939300A
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3937 |
| Mill Diameter (mm) | 10.00 |
| Length of Cut (mm) | 22.00 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| End Type | Ball; Single |
| Extended Reach | No |
| Undercutting | No |
| Variable Index | Yes |
| Length Of Cut Range (Decimal Inch) | 0.7000 to 1.0000 |
| Variable Helix | Yes |
| Length Type | Regular |
| Shank Diameter (mm) | 10.00 |
| Nose Radius (Decimal Inch) | 0.1968 |
| Overall Length (mm) | 72.00 |
| Mill Diameter Tolerance | +0.000 to -0.058 mm |
| Maximum Helix Angle | 38.00 |
| Minimum Helix Angle | 35.00 |
| Primary Workpiece Material Code | P; S; H; K; M |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 179 |
| Flute Type | Spiral |
| Single Or Double End | Single |
| Number Of Flutes | 4 |
| Coating/Finish | AlTiN |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.8661 |
