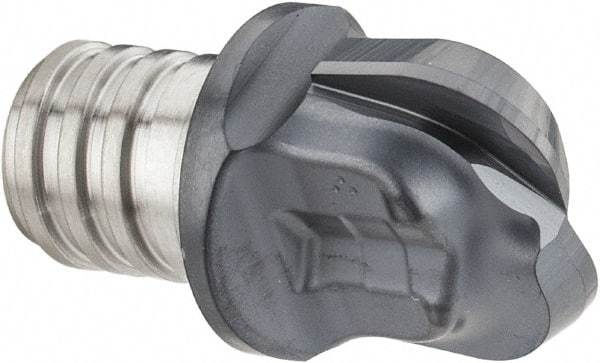

Iscar - MM HT Grade IC908 Carbide Ball Nose Milling Tip Insert - TiAlN Finish, 2 Flutes, 3/4" Cutting Diam, 0.45" Depth of Cut, 0.68" Extension, 1/4" Cnr Rad
Item #: 87124798
Brand: Iscar
Model #: 5604566
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Milling Tip Style | MM HT |
| Milling Tip Type | Ball Nose |
| Material | Carbide |
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Manufacturer's Grade | IC908 |
| Depth of Cut (Decimal Inch) | 0.4500 |
| Number of Flutes | 2 |
| Coating | TiAlN |
| Milling Tip Full Description | Ball Nose |
| Corner Radius (Decimal Inch) | 0.2500 |
| Coating Process | PVD |
| Extension From Holder (Decimal Inch) | 0.6800 |
| Thread Size | T12 |
| Manufacturers Catalog Number | MM HT.750N45R250-2T12 |
