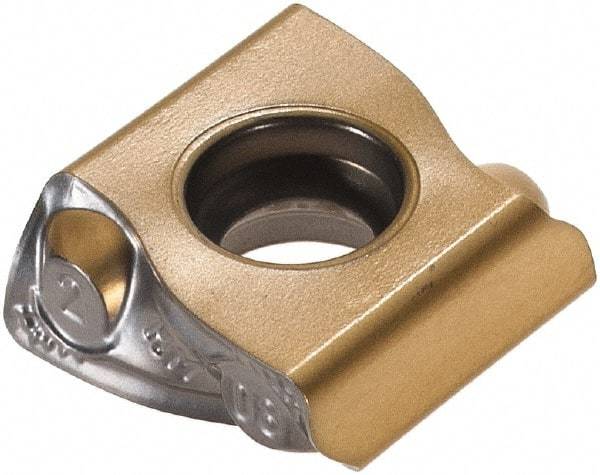

Iscar - LNMX110408 HM Grade IC807 Carbide Turning Insert - TiAlN Finish, 90° Rectangle, 3/16" Thick, 1/32" Corner Radius
Item #: 87077145
Brand: Iscar
Model #: 5507190
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNMX |
| Insert Size | 110408 |
| Material | Carbide |
| Length (mm) | 11.00 |
| Length (Decimal Inch) | 0.4330 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | IC807 |
| Coating | TiAlN |
| Material Grade | Submicron |
| Chip Breaker | HM |
| Rake | Positive |
| Relief Angle | 0 |
| Coating Process | PVD |
| Included Angle | 90 |
| Cutting Direction | Right Hand |
| Series | Heliturn |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Insert Holding Method | Screw |
| Shape | Rectangle |
