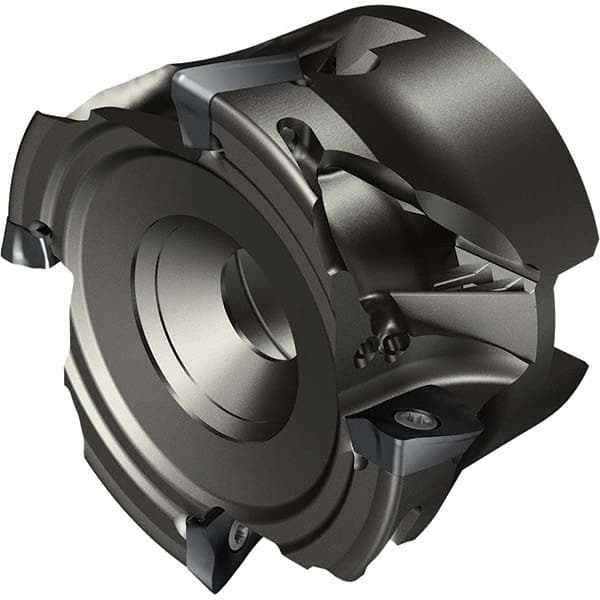

Sandvik Coromant - Indexable Square-Shoulder Face Mills Cutting Diameter (Inch): 2 Cutting Diameter (Decimal Inch): 2.0000
Item #: 13324595
Brand: Sandvik Coromant
Model #: 7842502
Product Specifications
Indexable Square-Shoulder Face Mills; Cutting Diameter (Inch): 2 ; Cutting Diameter (Decimal Inch): 2.0000 ; Arbor Hole Diameter (Inch): 3/4 ; Lead Angle: 90 ; Overall Height (mm): 30.00 ; Insert Compatibility: R390-11
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Lead Angle | 90 |
| Overall Height (mm) | 30.00 |
| Insert Compatibility | R390-11 |
| Series | CoroMill 390 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 10.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Cutter Style | RA390 |
| Number of Flutes | 3 |
| Maximum RPM | 10000 |
| Pitch | Coarse |
| ISO Number | RA390-051R19LW-11L |
| Toolholder Material | Titanium |
