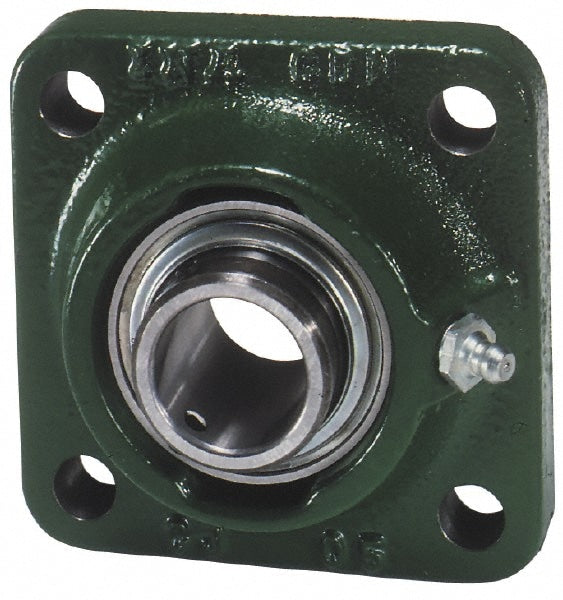

50mm ID, 5.6299" OAL x 2.3622" OAH 4-Bolt Set Screw Econ Seal Met
Item #: 57131716
Brand: INA Bearing
Model #: PCJY50
Product Specifications
| Type | 4Bolt Set Scrw Econ Seal Met |
| Inside Diameter (mm) | 50.0000 |
| Inside Diameter (Decimal Inch) | 1.9685 |
| Overall Length (Decimal Inch) | 5.6299 |
| Overall Height (Decimal Inch) | 2.3622 |
| Static Load Capacity | 5200.0 |
| Dynamic Load Capacity (Lb.) | 7900 |
| Distance Between Base And Center (mm) | 143.0000 |
| Distance Between Base And Center (Decimal Inch) | 5.6300 |
| UNSPSC Code | 31171500 |
| Shipping Weight (kg) | 2.900 |
| Flange Thickness (Decimal Inch) | 0.5906 |
| Type | 4Bolt Set Scrw Econ Seal Met |
| Inside Diameter (mm) | 50.0000 |
| Inside Diameter (Decimal Inch) | 1.9685 |
| Overall Length (Decimal Inch) | 5.6299 |
| Overall Height (Decimal Inch) | 2.3622 |
| Static Load Capacity | 5200.0 |
| Dynamic Load Capacity (Lb.) | 7900 |
| Distance Between Base And Center (mm) | 143.0000 |
| Distance Between Base And Center (Decimal Inch) | 5.6300 |
| UNSPSC Code | 31171500 |
| Shipping Weight (kg) | 2.900 |
| Flange Thickness (Decimal Inch) | 0.5906 |
| MSC Part # | 57131716 |
| Mfr Part # | PCJY50 |
