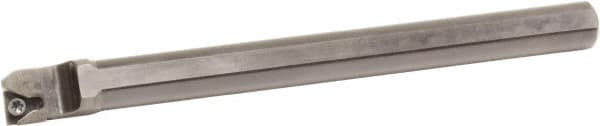

Sumitomo - 3/8" Min Bore Diam, 5" OAL, 3/8" Shank Diam, BSTJO Indexable Boring Bar - TPGT 63 Insert, Screw Holding Method
Item #: 86886389
Brand: Sumitomo
Model #: 2000W27
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | BSTJO |
| Minimum Bore Diameter (Decimal Inch) | 0.3750 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 5.0000 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Insert Compatibility | TPGT 63 |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 2 |
| Center to Cutting Edge (Decimal Inch) | 0.1880 |
| Insert Thickness (Inch) | 3/16 |
| Insert Inscribed Circle (Inch) | 3/4 |
| Rake Angle | -8 |
| Complete Insert Compatibility | TPGT 63 |
| Toolholder Material | Steel |
