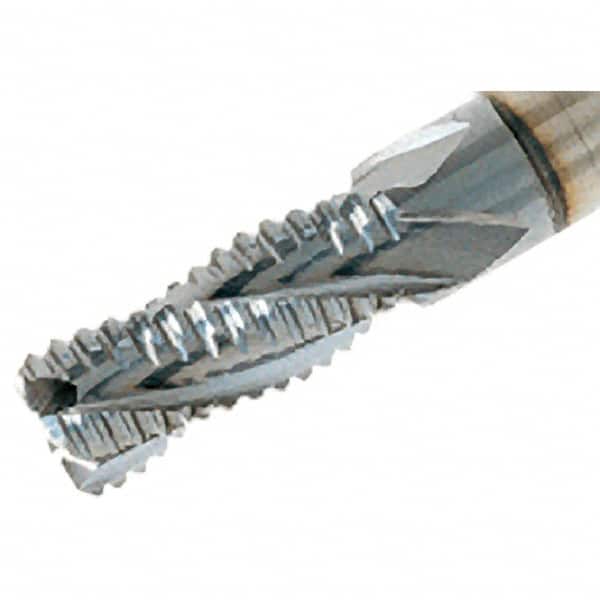

Iscar - 25mm Diam, Extra Coarse Pitch, 45mm LOC, 3 Flute Solid Carbide 45° Corner Chamfer Roughing End Mill - Uncoated, 121mm OAL, 25mm Shank Diam, Single End, Centercutting, 38° Helix
Item #: 86869104
Brand: Iscar
Model #: 5621488
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are used at reduced speeds for general applications on nonferrous metals.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 25.00 |
| Mill Diameter (Decimal Inch) | 0.9843 |
| Number of Flutes | 3 |
| Pitch | Extra Coarse |
| Length of Cut (mm) | 45.00 |
| Length of Cut (Decimal Inch) | 1.7717 |
| Shank Diameter (mm) | 25.00 |
| End Type | Corner Chamfer |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Overall Length (mm) | 121.00 |
| Centercutting | Center Cutting |
| Helix Angle | 38.00 |
| Extended Reach | No |
| Chamfer Width (mm) | 0.70 |
| Chamfer Width (Decimal Inch) | 0.0276 |
| Chamfer Angle | 45 |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Length Type | Regular |
| Flute Type | Spiral |
| Mill Diameter Tolerance (mm) | -0.040 to 0.073 |
| Shank Diameter Tolerance (mm) | 0.000/-0.013 |
| Overall Length (Decimal Inch) | 4.7638 |
