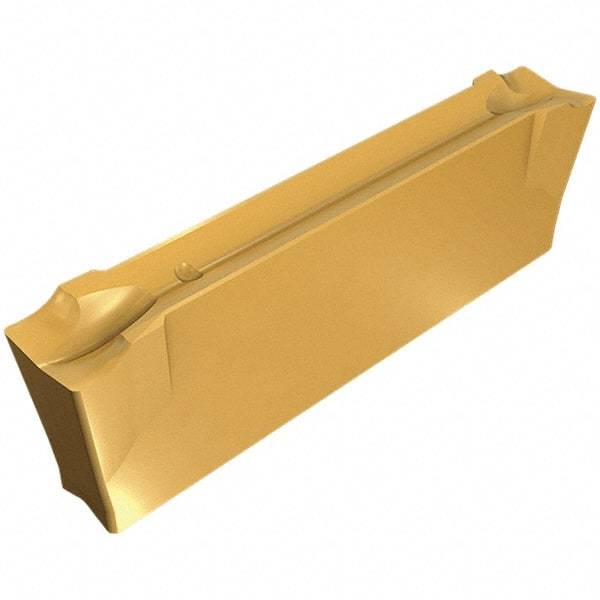

Iscar - DGN1402 IC1028 Grade, 0.0551" Cutting Width, Carbide Cutoff Insert - Neutral Lead Angle, 0.0063" Cnr Rad, TiAlN/TiN Coated, Double End
Item #: 86684461
Brand: Iscar
Model #: 6003055
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | DGN |
| Insert Size | 1402 |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 1.40 |
| Cutting Width (Decimal Inch) | 0.0551 |
| Material Grade | C5/C6 |
| Manufacturer's Grade | IC1028 |
| Coating | TiAlN/TiN |
| Series | Do-Grip |
| Relief Angle | 7 |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Coating Process | PVD |
| Overall Length (mm) | 15.80 |
| Overall Length (Decimal Inch) | 0.6220 |
| Corner Radius (Decimal Inch) | 0.0063 |
| Corner Radius (mm) | 0.16 |
| Overall Width (mm) | 1.40 |
| Overall Width (Decimal Inch) | 0.0551 |
