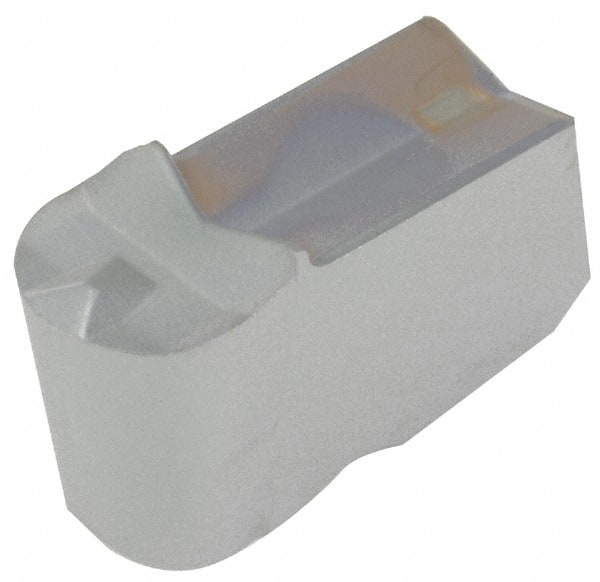

GCXF126464N-E IN1030 Carbide Milling Insert TiCN Finish, 1/4″ Thick x 1/4″ Wide
Item #: 86662590
Brand: Ingersoll Cutting Tools
Model #: 5803997
Product Specifications
| Insert Style | GCXF |
| Insert Size | 126464 |
| Insert Material | Solid Carbide |
| Material Grade | C6; C1; C2 |
| Manufacturer Grade | IN1030 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Corner Radius (Decimal Inch) | 0.1250 |
| Insert Hand | Neutral |
| Relief Angle | 7.00 |
| Coating Process | PVD |
| Iso Code | GCXF126464N-E IN1030 |
| Chip Breaker | E |
| Coating/Finish | TiCN |
| Width (Decimal Inch - 4 Decimals) | 0.2500 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2500 |
