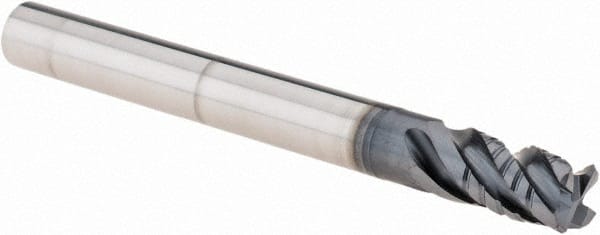

Corner Chamfer End Mill: 0.25″ Dia, 0.5″ LOC, 4 Flute, 0.01″ Chamfer Width, Solid Carbide 2-1/2″ OAL, 1/4″ Shank Dia, 38 ° Helix, TiAlN Coated
Item #: 86576196
Brand: Iscar
Model #: 5622300
Product Specifications
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (mm) | 0.25 in |
| Mill Diameter (Decimal Inch) | 0.25 in; 0.2500 |
| Number of Flutes | 4 |
| Length of Cut (Inch) | 1/2 |
| Length of Cut (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/4 in; 1/4 |
| Shank Diameter (mm) | 1/4 in |
| Shank Diameter (Decimal Inch) | 1/4 in |
| Material | Solid Carbide |
| Finish/Coating | TiAlN |
| Overall Length (mm) | 2.5 in |
| Overall Length (Inch) | 2-1/2; 2.5 in |
| Centercutting | No; NonCenter Cutting |
| Helix Angle | 38.00 |
| Extended Reach | No |
| Chamfer Width (Decimal Inch) | 0.0100; 0.0100 in |
| Coolant Induced | No |
| Chamfer Angle | 45 |
| Material Grade | Submicron |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Length Type | Regular |
| Flute Type | Spiral |
| Overall Length (Decimal Inch) | 2.5000; 2.5 in |
| Series/List | Solid Mill |
